Hyundai Veloster: Start/Stop Button. Components and Components Location - Button Engine Start System - Body Electrical SystemHyundai Veloster: Start/Stop Button. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button. Components and Components Location

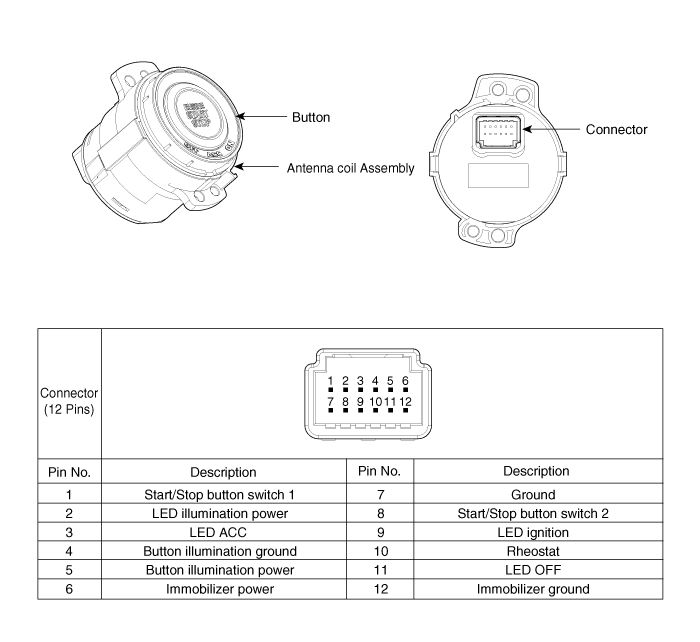

Component


Description and Operation
Description System Overview The System offers the following features: - Human machine interface through a 1-stage button, for terminal switching and engine start. ...

Start/Stop Button. Repair procedures
Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the center fascia panel assembly (A). 3. ...
