Hyundai Veloster: Shelf disassembly and installment
Hyundai Veloster 2011-2017 Owner's Manual / Features of your vehicle / Tailgate / Shelf disassembly and installment

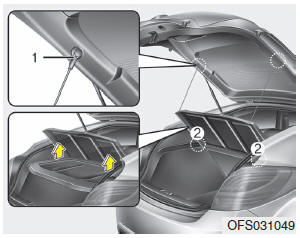

1. Disassemble the wires(1) connected to left and right fixed hook.
2. Push
the shelf(2) up and disassemble the shelf.
3. To install the shelf, push the shelf
down at original position and fix the wire to position(1)
CAUTION
When you close the tailgate, check the shelf position. Be careful not to collide the shelf and tailgate. If not, the shelf may be damaged.
