Hyundai Veloster: Front Disc Brake. Components and Components Location - Brake System - Brake SystemHyundai Veloster: Front Disc Brake. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Brake System / Brake System / Front Disc Brake. Components and Components Location

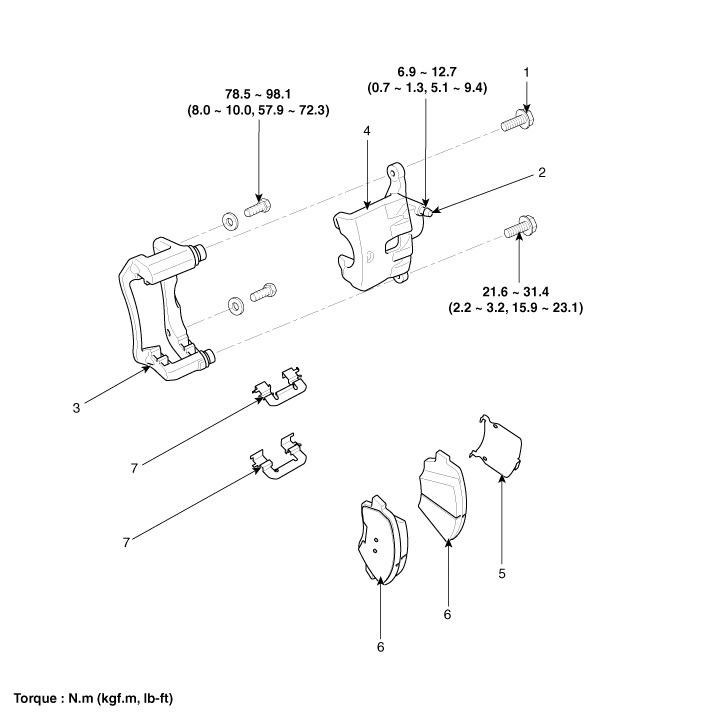

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper body
4. Caliper carrier
5. Inner pad shim
6. Brake pad
7. Pad retainer


Brake Pedal. Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to ...

Front Disc Brake. Repair procedures
Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~79.6 lb-ft) ...
