Hyundai Veloster: Crankshaft Position Sensor (CKPS). Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: Crankshaft Position Sensor (CKPS). Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS). Schematic Diagrams

Circuit Diagram

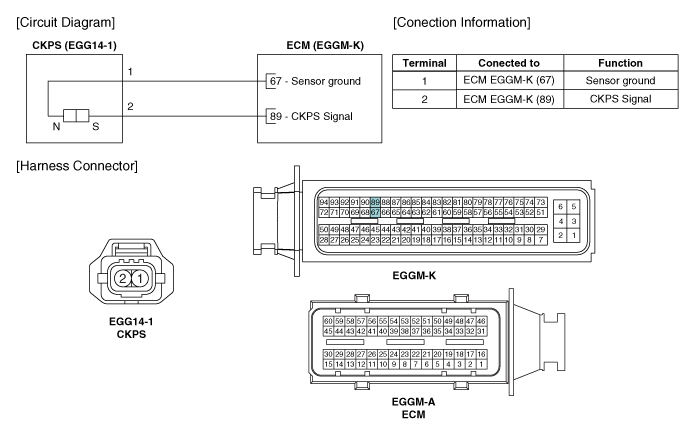

[NON - ISG]

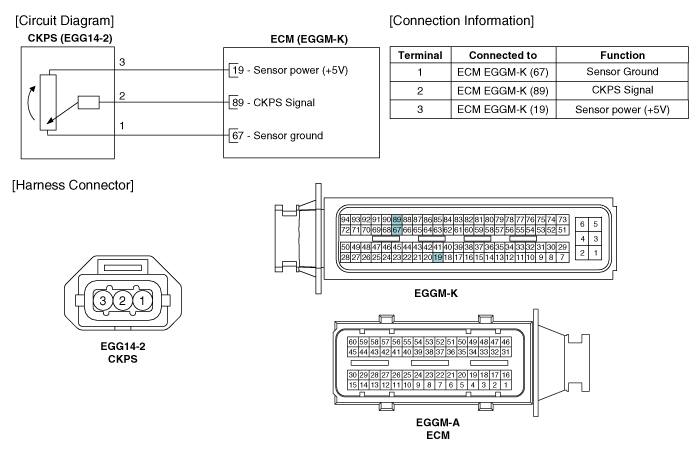

[ISG]


Crankshaft Position Sensor (CKPS). Troubleshooting
Waveform [NON-ISG] This example shows a typical Crankshaft Position Sensor(CkPS) and Camshaft Position Sensor(CMPS) waveform at idle.The PCM controls the injection and igni ...

Crankshaft Position Sensor (CKPS). Repair procedures
Inspection 1. Check signal waveform of CKPS and CMPS using a GDS. Specification: Refer to “Waveform” Re ...
