Hyundai Veloster: Crankshaft Position Sensor (CKPS). Troubleshooting - Engine Control System - Fuel SystemHyundai Veloster: Crankshaft Position Sensor (CKPS). Troubleshooting

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS). Troubleshooting

Waveform

[NON-ISG]

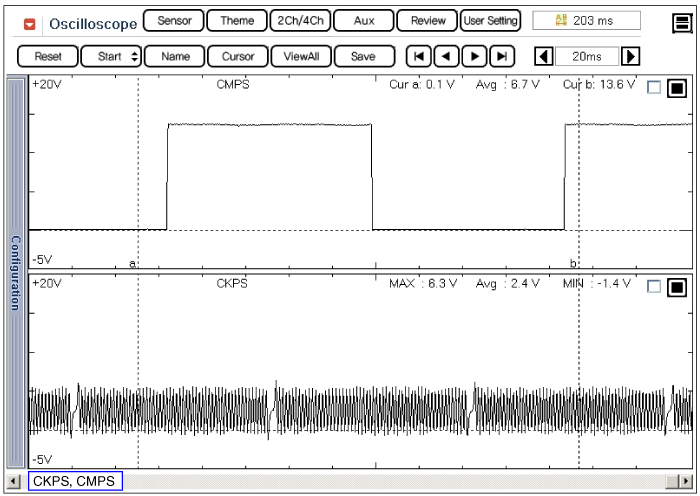

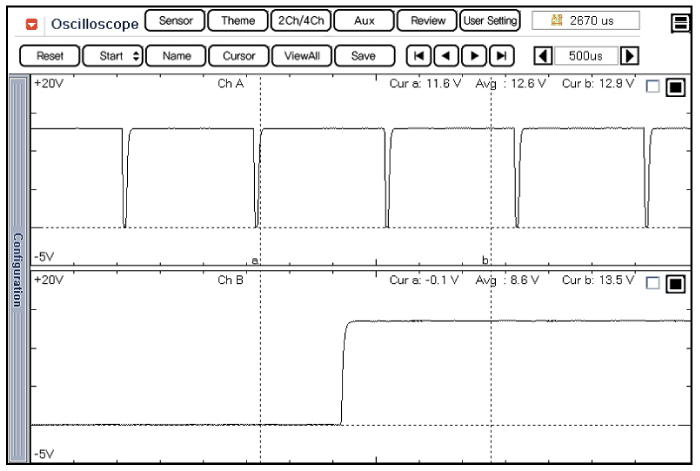

This example shows a typical Crankshaft Position Sensor(CkPS) and Camshaft Position Sensor(CMPS) waveform at idle.The PCM controls the injection and ignition timing by using these signals.
Generally CkPS signal is used to detect the piston's position and CMPS signal is used to detect the Top Dead Center of each cylinder.
[ISG]

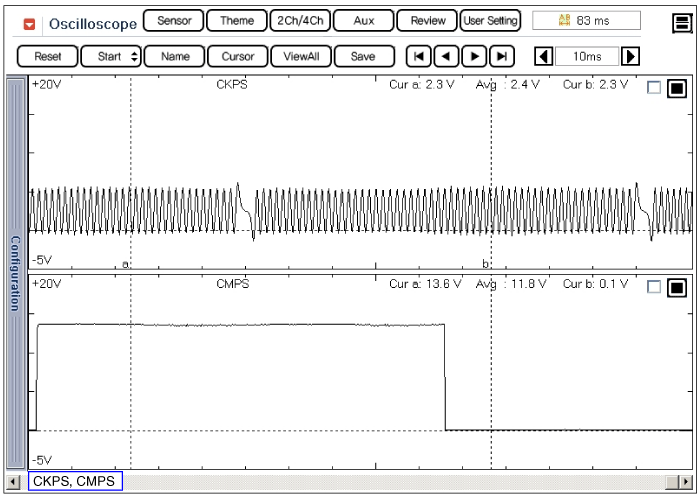

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.

Crankshaft Position Sensor (CKPS). Specifications
Specification [ISG] Item Specification Coil Resistance (Ω) 774 ~ 946 [20°C (68°F)] ...

Crankshaft Position Sensor (CKPS). Schematic Diagrams
Circuit Diagram [NON - ISG] [ISG] ...
