Hyundai Veloster: Clutch Pedal. Components and Components Location - Clutch System - Clutch SystemHyundai Veloster: Clutch Pedal. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Clutch System / Clutch System / Clutch Pedal. Components and Components Location

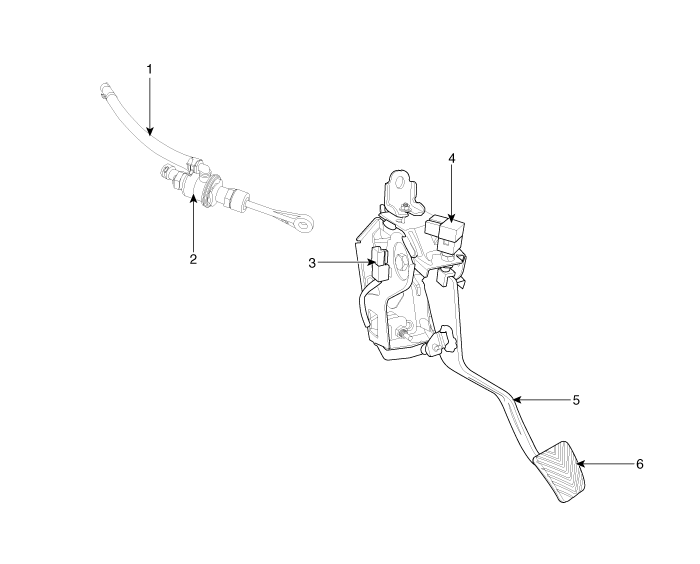

Components

1. Reverse hose
2. Master cylinder
3. Ignition lock switch
4. Clutch switch
5. Clutch arm assembly
6. Pedal pad


Clutch Master Cylinder. Repair procedures
Removal • Do not spill brake fluid on the vehicle; it may damage the paint if brake fluid d ...

Clutch Pedal. Repair procedures
Inspection Clutch Pedal Inspection 1. Measure the clutch pedal height (from the face of the pedal pad to the floor board) and the clutch pedal clevis pin pla ...
