Hyundai Veloster: Clutch Cover And Disc. Components and Components Location - Clutch System - Clutch SystemHyundai Veloster: Clutch Cover And Disc. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Clutch System / Clutch System / Clutch Cover And Disc. Components and Components Location

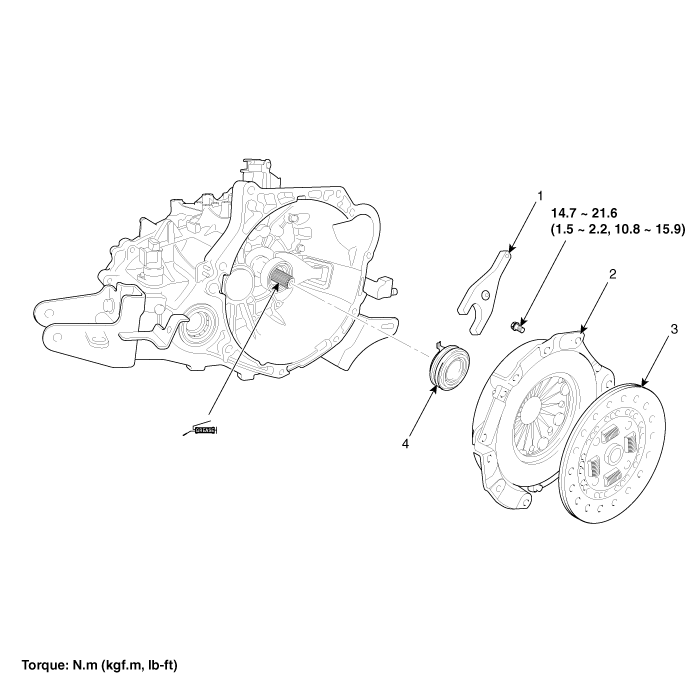

Components

1. Clutch release fork
2. Clutch cover assembly
3. Clutch disk assembly
4. Clutch release bearing


Clutch System
...

Clutch Cover And Disc. Repair procedures
Removal 1. Remove the transaxle assembly. (Refer to "Manual transaxle system" in MT group) 2. Remove the clutch cover bolts ...
