Hyundai Veloster: Rear Disc Brake. Components and Components Location
First generation (2011–present) / Hyundai Veloster 2010-2018 Service Manual / Brake System / Brake System / Rear Disc Brake. Components and Components Location
First generation (2011–present) / Hyundai Veloster 2010-2018 Service Manual / Brake System / Brake System / Rear Disc Brake. Components and Components Location
Components
|

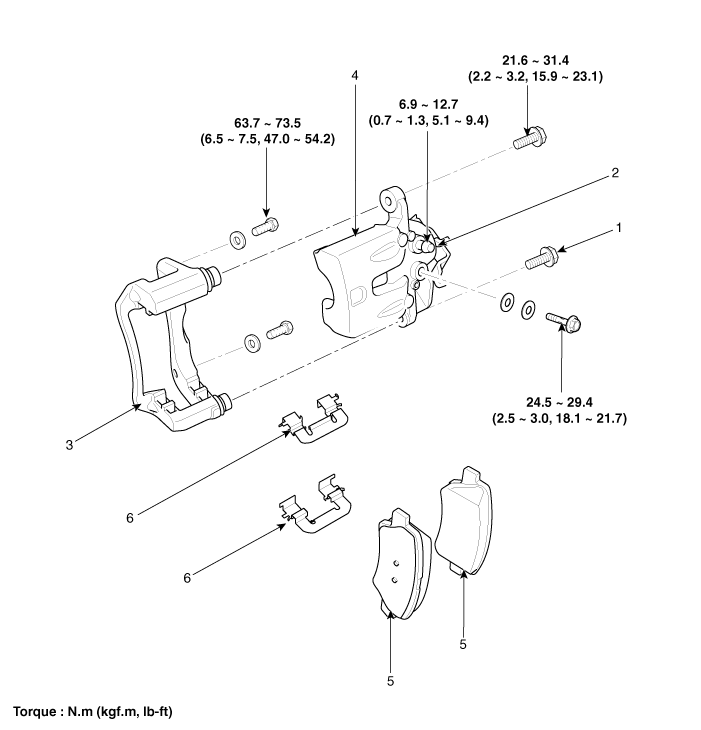

1. Guide rod bolt 2. Bleed screw 3. Caliper carrier |
4. Caliper body 5. Brake pad 6. Pad retainer |
Front Disc Brake. Repair procedures
Removal
1.
Remove the front wheel & tire.
Tightening torque:
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~79.6 lb-ft)
...
Rear Disc Brake. Repair procedures
Removal
1.
Remove the rear wheel & tire.
Tightening torque:
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
...
