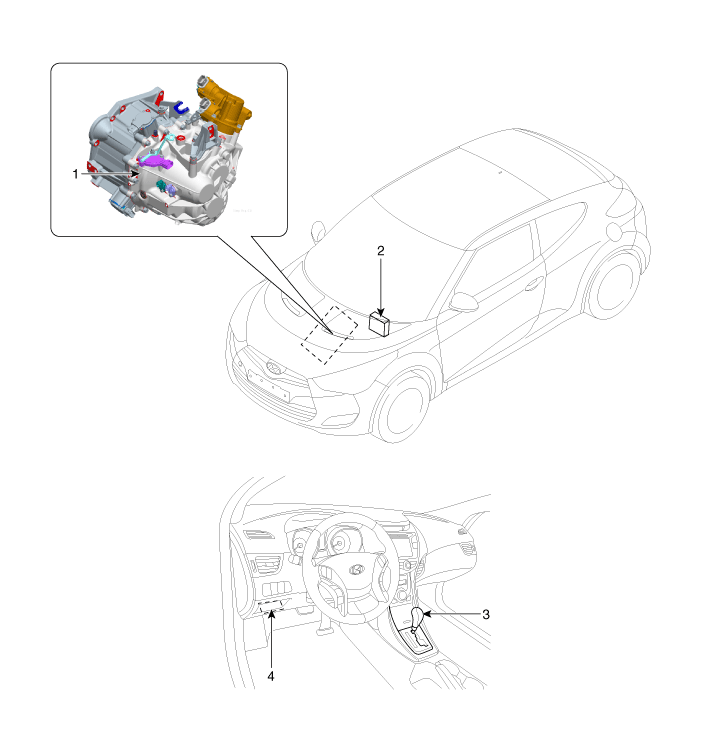

Component Location
|
1. DCT (Dual Clutch Transmission) 2. DCT Control Module |
3. Shift Lever 4. Data Link Connector (DLC) |
Description and Operation
Description
The Dual Clutch Transmission (DCT) control system measures required data
to identify the state of the control target and computes the appropriate compensation
value if adjustment ...
DCT Control Modle (TCM) > Description and Operation
Description
The Transmission Control Module (TCM) is like the brain for the DCT. It
receives information from various sensors for a wide range of transmission controls
to provide an optimal ...
