Hyundai Veloster: Rear Body. Body Repair
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Body Dimensions / Rear Body. Body Repair
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Body Dimensions / Rear Body. Body Repair
|
|
|
|
|

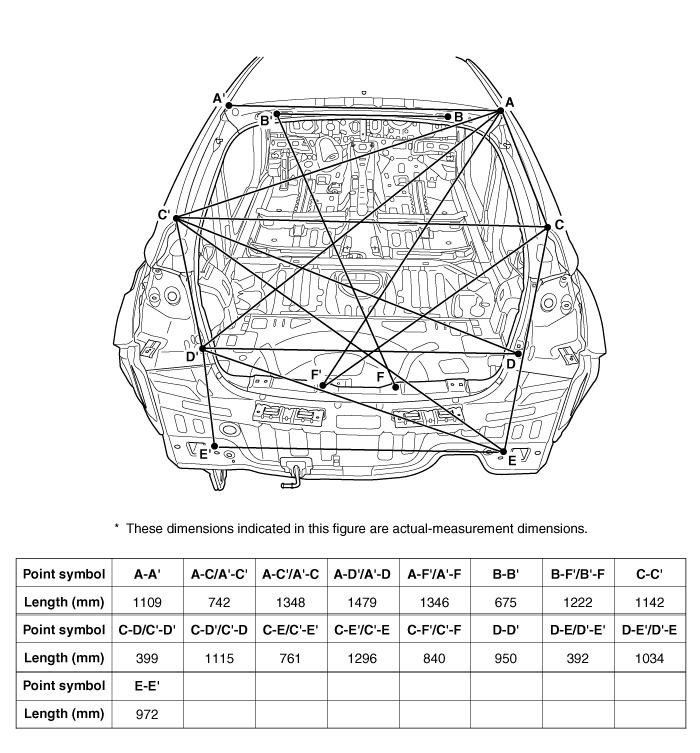

Roof panel rear corner |
Tail gate hinge mounting hole (Ø12) |
Side outer panel rear corner |
|
|
|
|
|
Rear bumper mounting hole (8.5X8.5) |
Rear bumper mounting hole (10X14) |
Rear bumper mounting hole (Ø10) |
|
|
|
|
|
Rear transverse trim mounting hole (Ø8.5) |
|
|
Body Repair
Interior A
Front pillar trim mounting hole (Ø8)
Curtain airbag mounting hole (Ø6.6)
...
Under Body. Body Repair
Projected Dimensions
Front side member tooling hole (Ø6.6)
Front side member tooling hole (Ø6.6)
...
