Hyundai Veloster: Schematic Diagrams
Hyundai Veloster 2011-2017 Service Manual / Steering System / Electric Power Steering / Schematic Diagrams

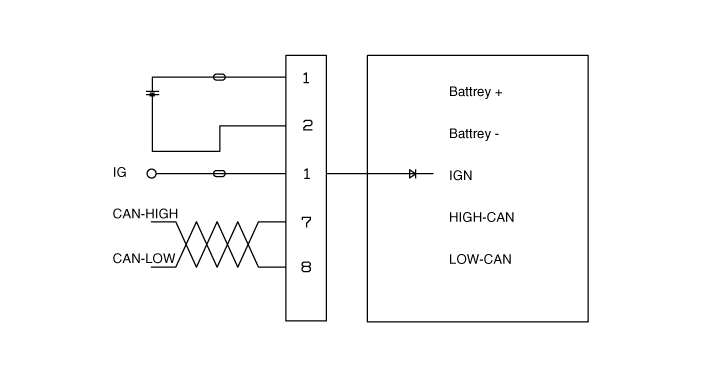

MDPS Circuit Diagram

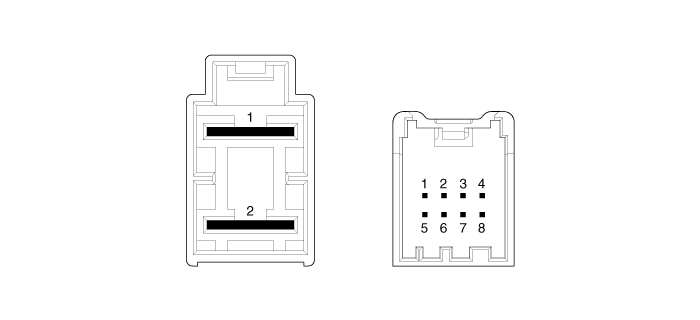

Harness Connector
|
Type |
Pin NO |
Description |
|
Battery |
1 |
Battery + |
|
2 |
Battery - |
|
|
VSS |
1 |
IGN |
|
2 |
- |
|
|
3 |
- |
|
|
4 |
- |
|
|
5 |
- |
|
|
6 |
|
|
|
7 |
High CAN |
|
|
8 |
Low CAN |
Components and Components Location
Components
1. Steering column
2. ECU
3. Motor
4. Steering gear box
...
Description and Operation
Description
EPS (Electric power steering, Column assist type) system uses an electric
motor to assist the steering force and it is an engine operation independent
steering system.
EPS ...
