With the door lock button
- To unlock a door, push the door lock button (1) to the “Unlock” position.
The red mark (2) on the button will be visible.
- To lock a door, push the door lock button (1) to the “Lock” position.
If the door is locked properly, the red mark (2) on the button will not be visible.
- To open a door, pull the door handle (3) outward.
- If the inner door handle on either front door is pulled when the door
lock button is in the locked position, the door will unlock and open.
- Front door cannot be locked if the ignition key is in the ignition switch
and the door is open.
- A door cannot be locked if the smart key is in the vehicle and any door
is open.
WARNING - Door lock malfunction
If a power door lock ever fails to function while you are in the vehicle,
try one or more of the following techniques to exit:
- • Operate the door unlock feature repeatedly (both electronic and manual)
while simultaneously pulling on the door handle.
- • Operate the other door locks and handles, front and rear.
- • Lower a front window and use the key to unlock the door from outside.

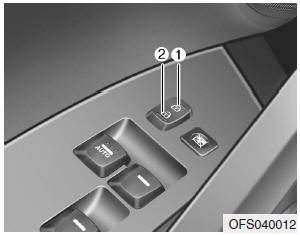

With central door lock switch (if equipped)
Operate by depressing the central door lock switch.
- When pushing down on the front portion (1) of the switch, all vehicle
doors will lock.
- When pushing down on the rear portion (2) of the switch, all vehicle doors
will unlock.
- If the key is in the ignition switch and front door is open, the doors
will not lock even though the front portion (1) of central door lock switch
is pressed.
- If the smart key is in the vehicle and any door is open, the doors will
not lock even though the front portion(1) of central door lock switch is pressed.
WARNING - Doors
- • The doors should always be fully closed and locked while the vehicle
is in motion to prevent accidental opening of the door. Locked doors will also
discourage potential intruders when the vehicle stops or slows.
- • Be careful when opening doors and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the vehicle in the path of the door. Opening
a door when something is approaching can cause damage or injury.
WARNING - Unlocked vehicles
Leaving your vehicle unlocked can invite theft or possible harm to you or
others from someone hiding in your vehicle while you are gone. Always remove the
ignition key, engage the parking brake, close all windows and lock all doors when
leaving your vehicle unattended.
WARNING - Unattended children
An enclosed vehicle can become extremely hot, causing death or severe injury
to unattended children or animals who cannot escape the vehicle. Furthermore, children
might operate features of the vehicle that could injure them, or they could encounter
other harm, possibly from someone gaining entry to the vehicle. Never leave children
or animals unattended in your vehicle.
Turn the key toward the rear of the vehicle to unlock and toward the front
of the vehicle to lock.
If you lock the door with a key, all vehicle doors will lock automatically.
(if equipped ...
All doors will be automatically unlocked when the impact is delivered to impact
sensors while the ignition switch is ON. However, the doors may not be unlocked
if mechanical problems occur with th ...
