Components
|

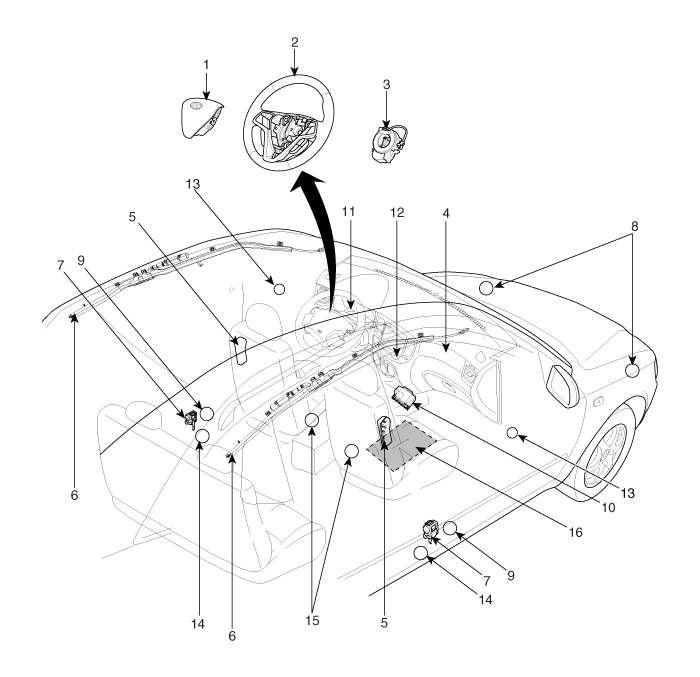

1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Passenger Airbag (PAB) 5. Side Airbag (SAB) 6. Curtain Airbag (CAB) 7. Seat Belt Pretensioner (BPT) 8. Front Impact Sensor (FIS) |
9. Side Impact Sensor (SIS) 10. Supplemental Restraint System Control Module (SRSCM) 11. Airbag Warning Lamp 12. Telltale Lamp 13. Pressure Side Impact Sensor (P-SIS) 14. Anchor Pretensioner (APT) 15. Seat Belt Buckle Switch 16. Passive Occupant Detection System (PODS-F) |
Components Location

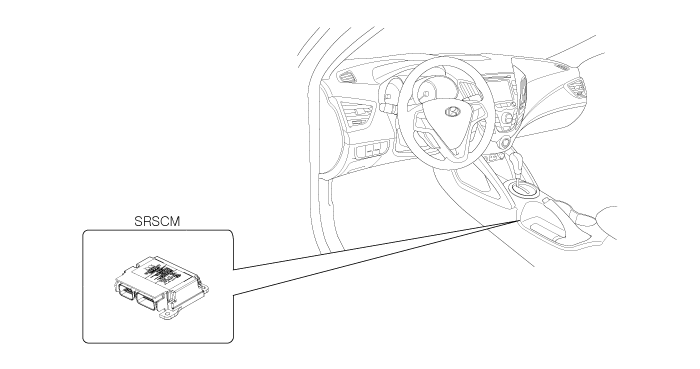

| Supplemental Restraint System Control Module (SRSCM) |

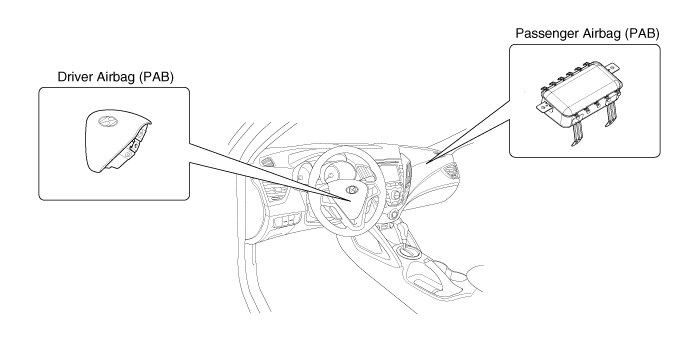

| Driver Airbag (DAB) / Passenger Airbag (PAB) |

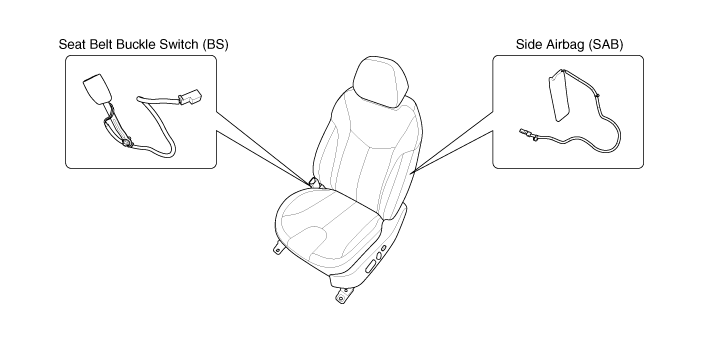

| Side Airbag (SAB) / Seat Belt Buckle Switch (BS) |

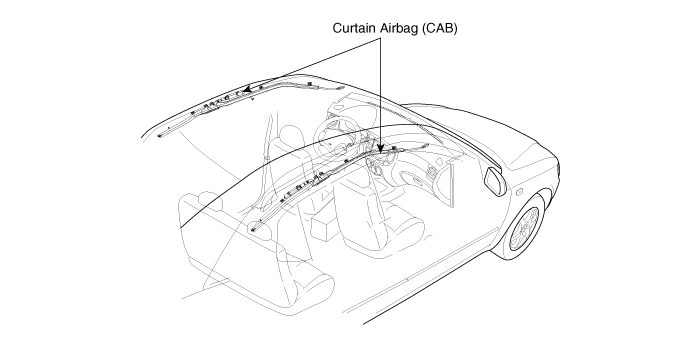

| Curtain Airbag (CAB) |
| Front Impact Sensor (FIS) |

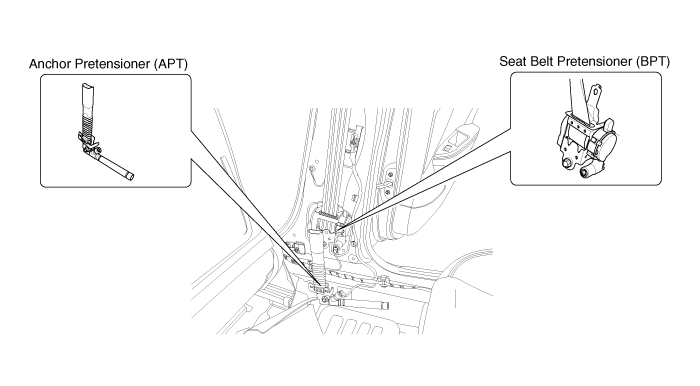

| Seat Belt Pretensioner (BPT) / Anchor Pretensioner (APT) |

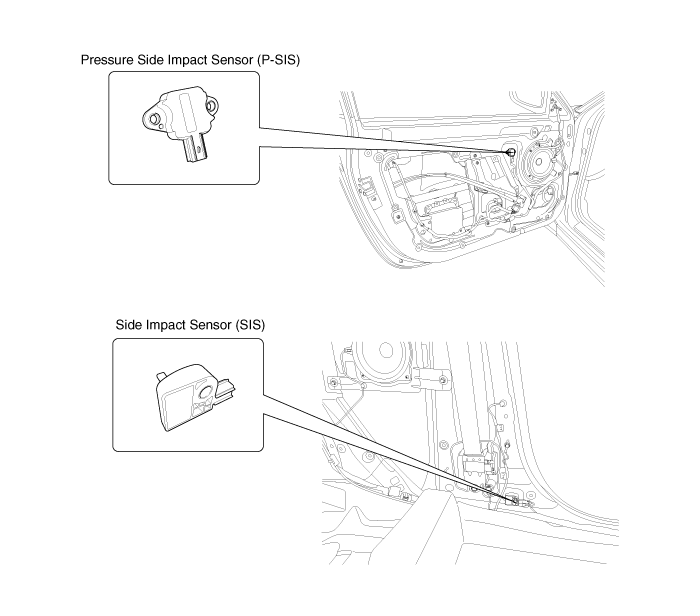

| Side Impact Sensor (SIS) / Pressure Side Impact Sensor (P-SIS) |
Repair procedures
Component Replacement After Deployment
Before doing any SRS repairs, use the GDS to check for DTCs. Refer
to the Diagnostic Tr ...
SRSCM
...
