Hyundai Veloster: Front Wheel Speed Sensor. Components and Components Location - ESC(Electronic Stability Control) System - Brake SystemHyundai Veloster: Front Wheel Speed Sensor. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Brake System / ESC(Electronic Stability Control) System / Front Wheel Speed Sensor. Components and Components Location

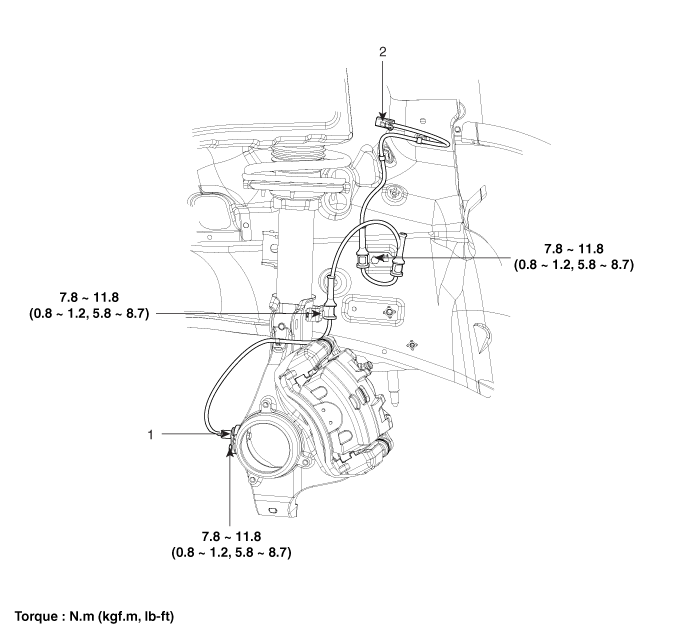

Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector
