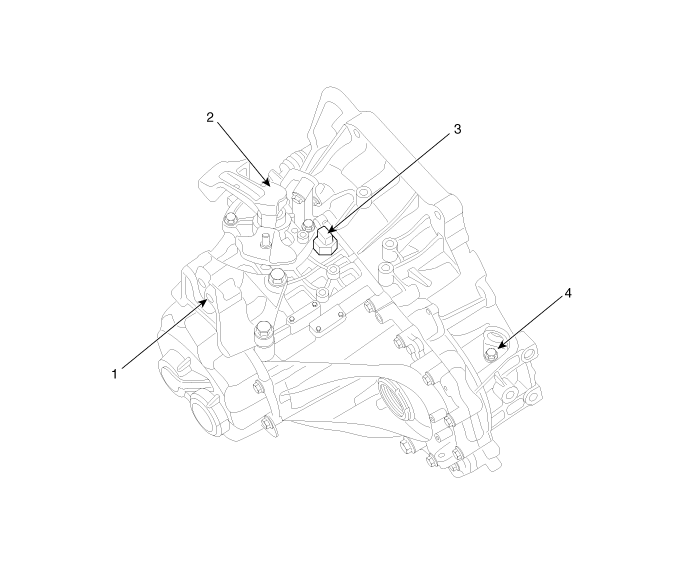

Components
|
1. Transaxle support bracket 2. Control shaft complete |
3. Back up lamp switch 4. Speedmeter |
