Hyundai Veloster: Gear Actuator > Components and Components Location - Dual Clutch Transmission Control System - Dual Clutch Transmission(DCT) SystemHyundai Veloster: Gear Actuator > Components and Components Location

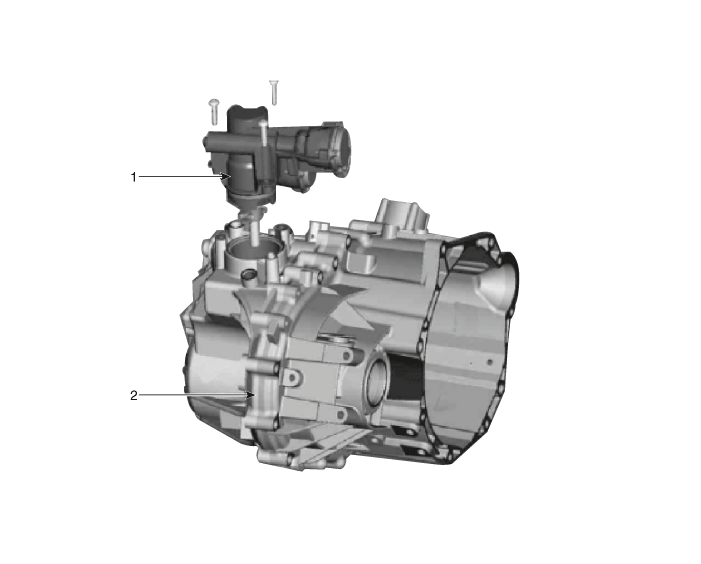

Component Location

1. Gear actuator
2. DCT(Dual Clutch Transmission)
