Hyundai Veloster: Front Hub / Knuckle. Components and
Components Location - Front Axle Assembly - Driveshaft and axleHyundai Veloster: Front Hub / Knuckle. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle. Components and Components Location

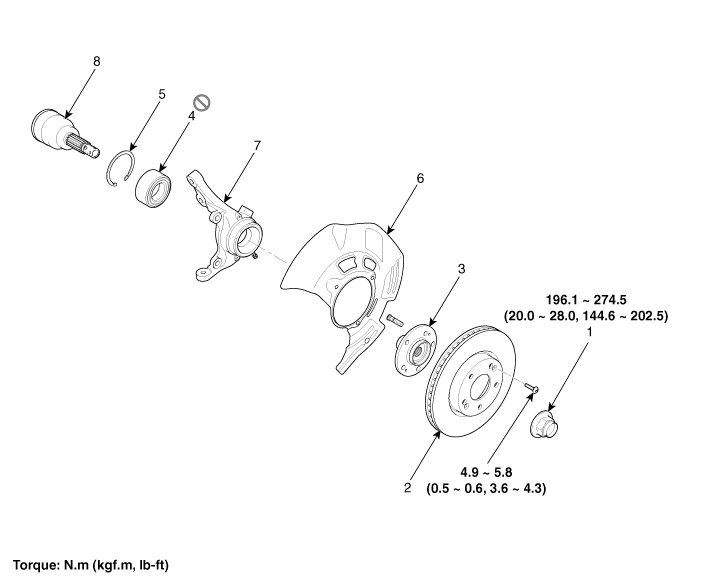

Components

1. Drive shaft caulking nut
2. Brake disc
3. Hub
4. Wheel bearing
6. Snap ring
7. Dust cover
8. Knuckle
9. Drive shaft


Front Axle Assembly
...

Front Hub / Knuckle. Repair procedures
Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel an ...
