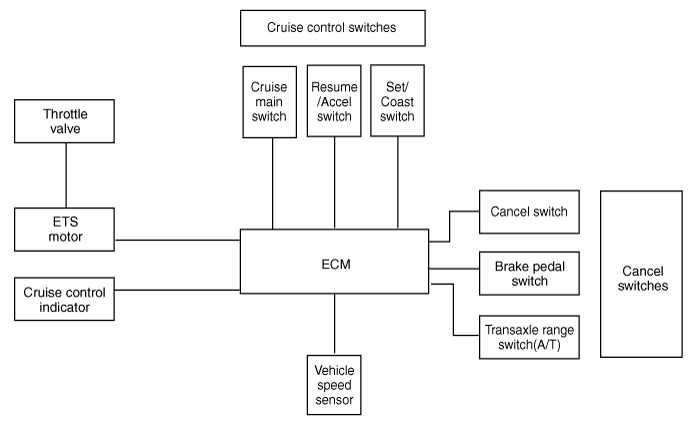

System Block Diagram
Component Parts And Function Outline
|
Component part |
Function |
|
|
Vehicle-speed sensor |
Converts vehicle speed to pulse. |
|
|
ECM |
Receives signals from sensor and control switches. |
|
|
Cruise control indicator |
Illuminate when CRUISE main switch is ON (Built into cluster) |
|
|
Cruise Control switches |
ON/OFF switch |
Switch for automatic speed control power supply. |
|
Resume/Accel switch |
Controls automatic speed control functions by Resume/Accel switch
(Set/Coast switch) |
|
|
Set/Coast switch |
||
|
Cancel switches |
Cancel switch |
Sends cancel signals to ECM. |
|
Brake-pedal switch |
||
|
Transaxle range switch (A/T) |
||
|
ETS motor |
Regulates the throttle valve to the set opening by ECM. |
|
* ETS : Electronic Throttle System
Description and Operation
Cruise Control
The cruise control system is engaged by the cruise "ON/OFF" main switch
located on right of steering wheel column. The system has the capability to
cruise, coast, ac ...
