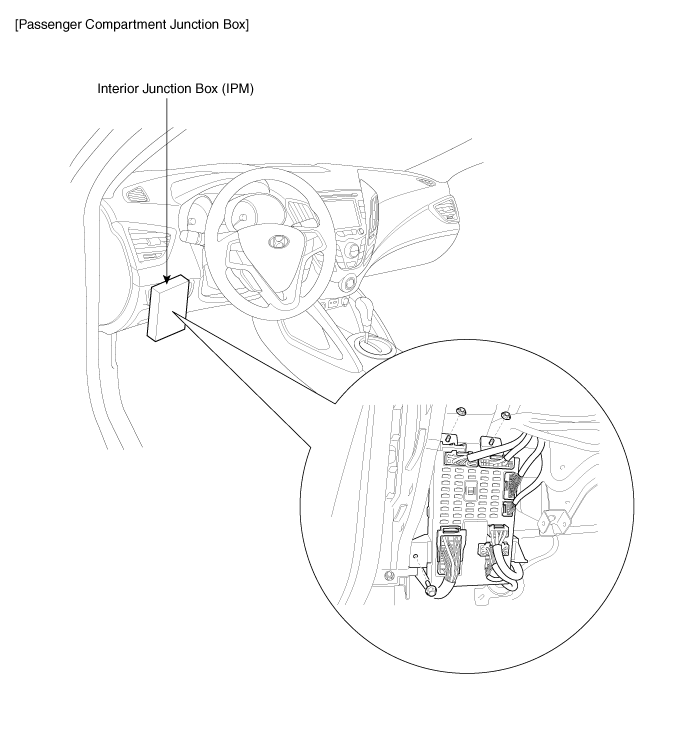

Component Location
|

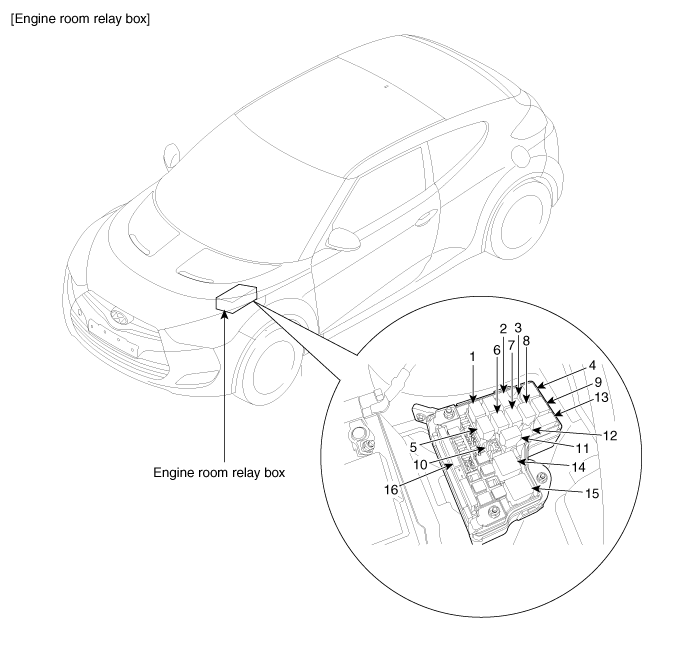

1. A/C relay 2. Fuel pump relay 3. Rear wiper relay 4. Blower relay 5. Buglar alarm horn realy 6. Front wiper relay |
7. Starter relay 8. Front fog rlay 9. Cooling fan relay (LOW) 10. Multi purpose check connector 11. Rear glass defogger |
12. Hill start assist relay 13. Horn relay 14. Cooling fan relay (HI) 15. Engine control relay 16. Multi fuse |
