Hyundai Veloster: Clutch Release Cylinder. Components and Components Location - Clutch System - Clutch SystemHyundai Veloster: Clutch Release Cylinder. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Clutch System / Clutch System / Clutch Release Cylinder. Components and Components Location

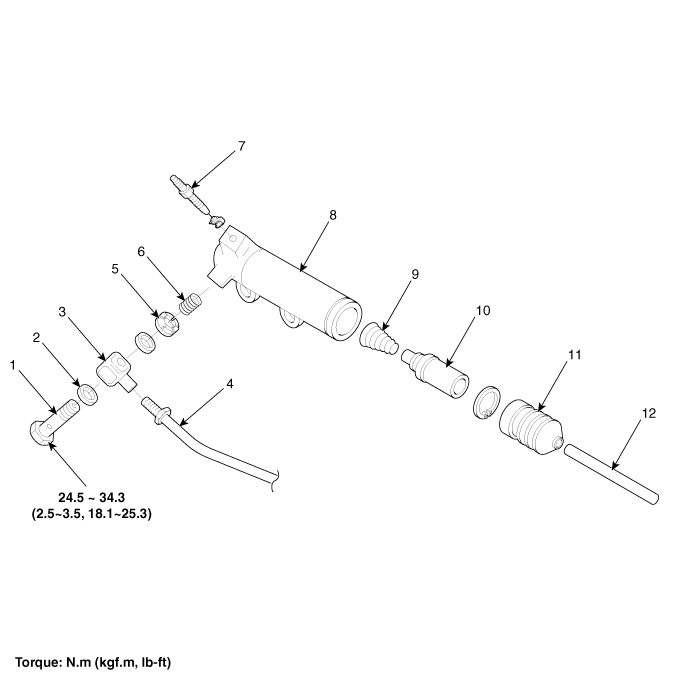

Components

1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod


Clutch Pedal. Repair procedures
Inspection Clutch Pedal Inspection 1. Measure the clutch pedal height (from the face of the pedal pad to the floor board) and the clutch pedal clevis pin pla ...

Clutch Release Cylinder. Repair procedures
Removal 1. Drain the brake fluid through the bleed plug (A). 2. Remove the clutch release cylinder assembly (C) after removing th ...
