Hyundai Veloster: Heated Oxygen Sensor (HO2S). Troubleshooting - Engine Control System - Fuel SystemHyundai Veloster: Heated Oxygen Sensor (HO2S). Troubleshooting

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S). Troubleshooting

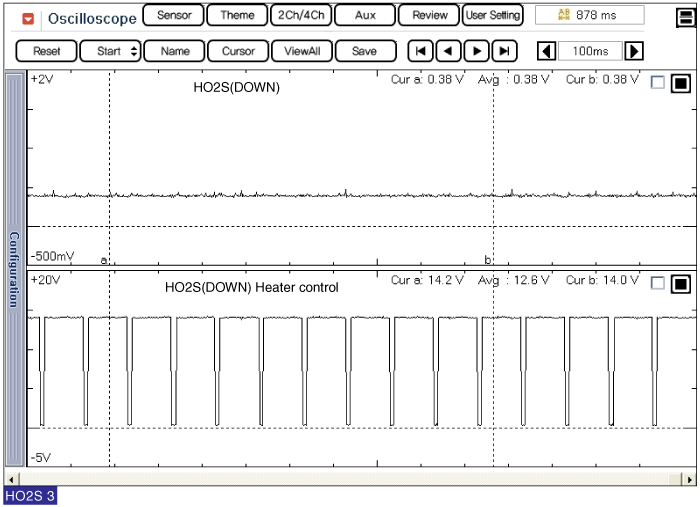

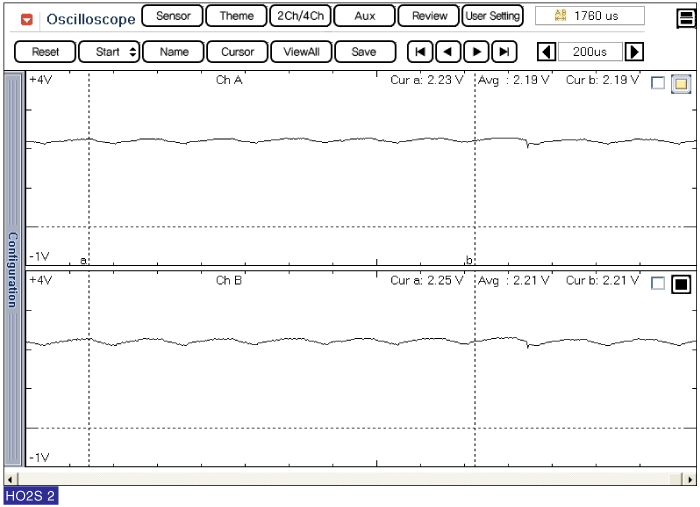

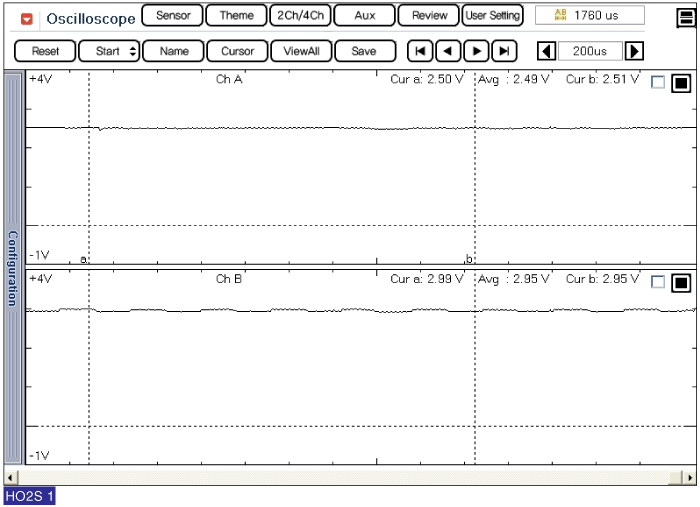

Signal Waveform
