Hyundai Veloster: AVN Head Unit. Components and Components Location - AVN System - Body Electrical SystemHyundai Veloster: AVN Head Unit. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / AVN System / AVN Head Unit. Components and Components Location

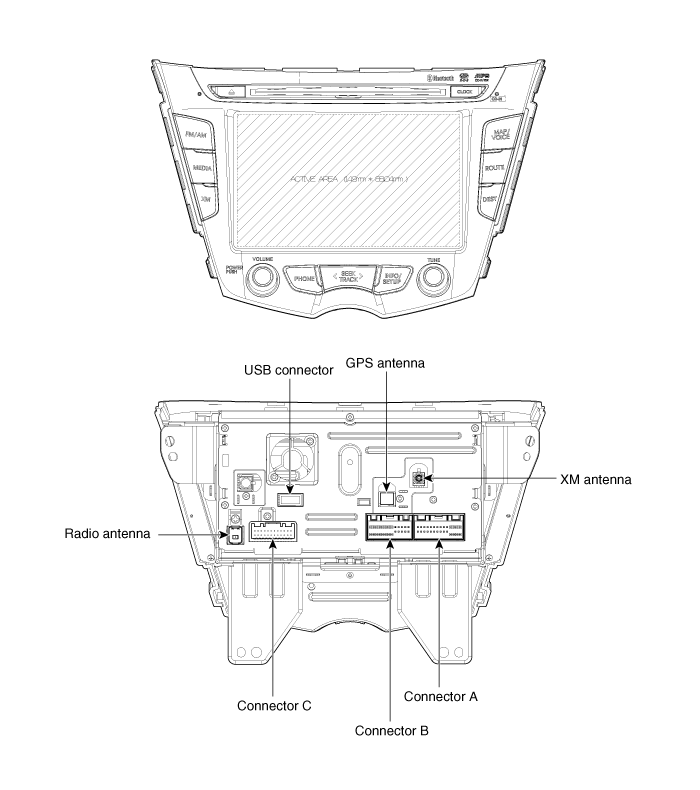

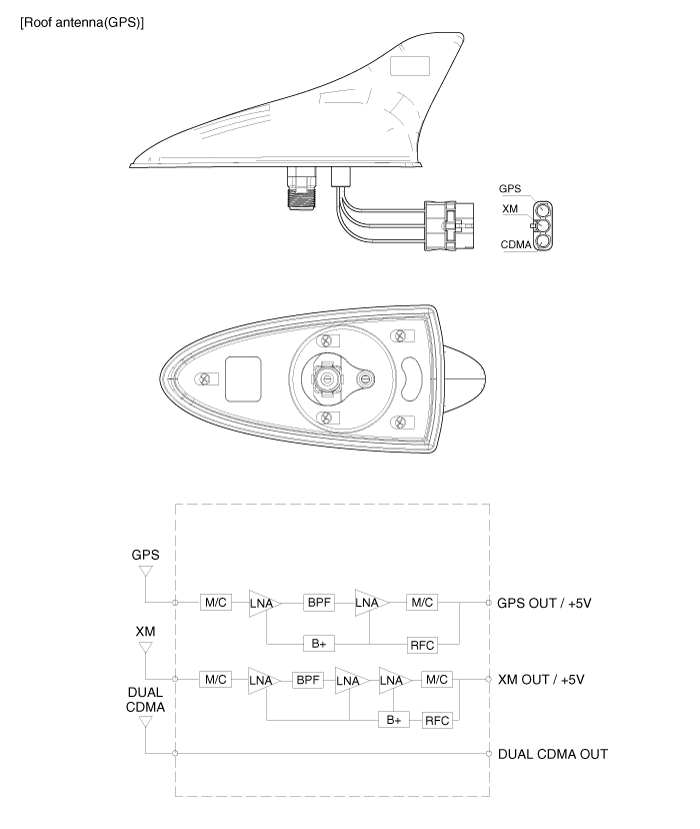

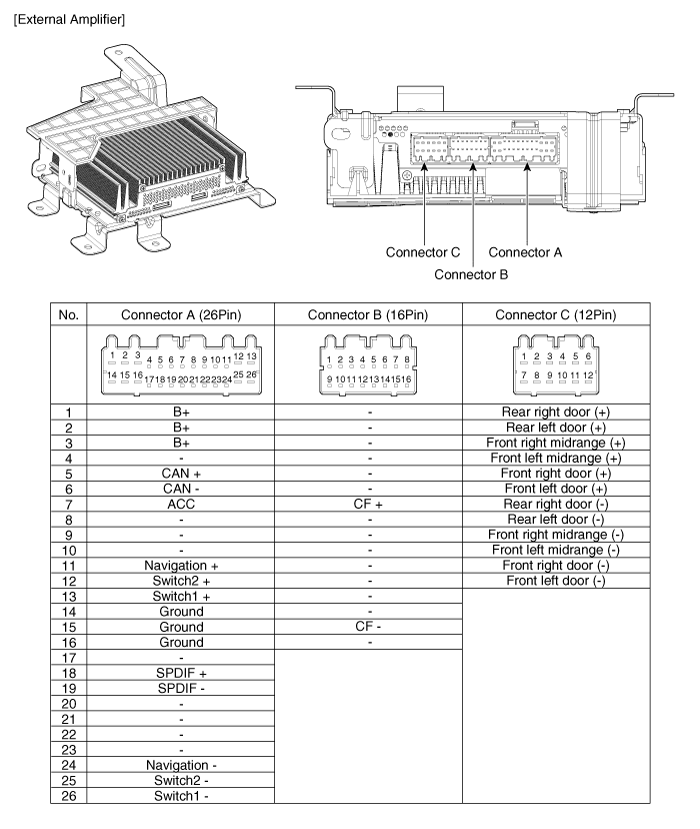

Components

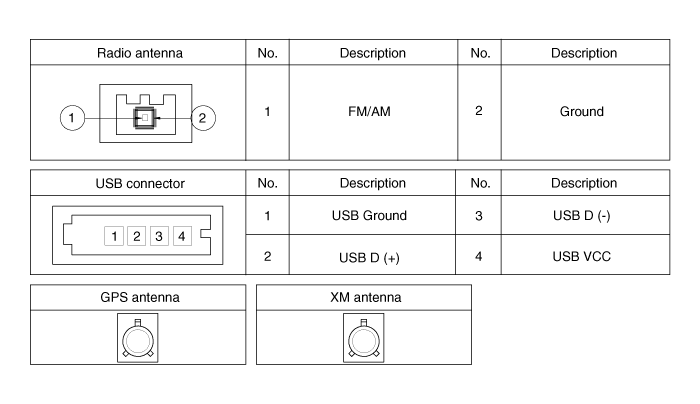

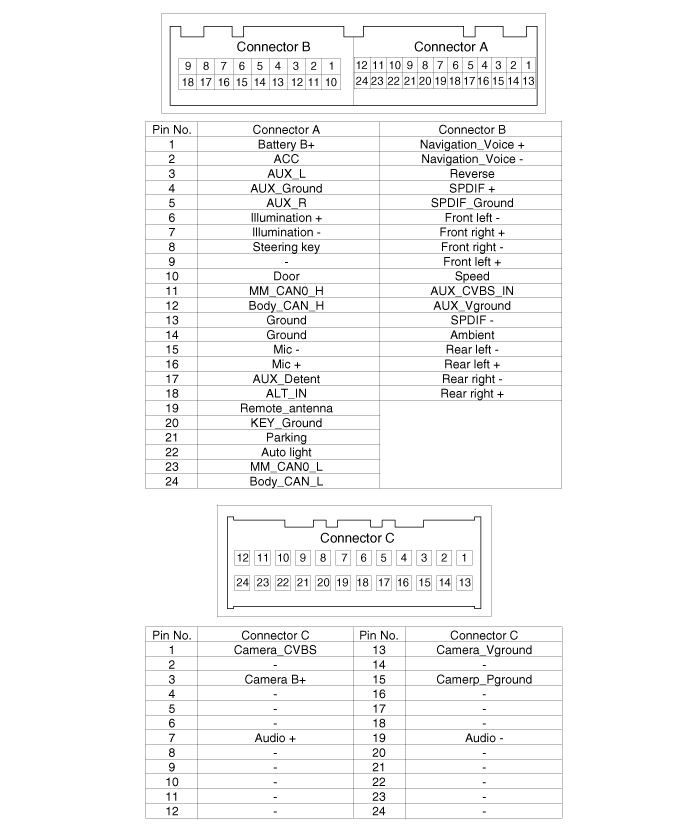

AVN (A/V & Navigation) Head Unit Connector


Description and Operation
Limitations Of The Navigation system GPS Signal Reception State As the GPS satellite frequency is received/transmitted in straight lines, reception may not work if hiding devices are placed ...

AVN Head Unit. Repair procedures
Removal AVN Head Unit • Take care not to scratch the center fascia panel and related par ...
