Hyundai Veloster: AVN Remote Control. Schematic Diagrams - AVN System - Body Electrical SystemHyundai Veloster: AVN Remote Control. Schematic Diagrams

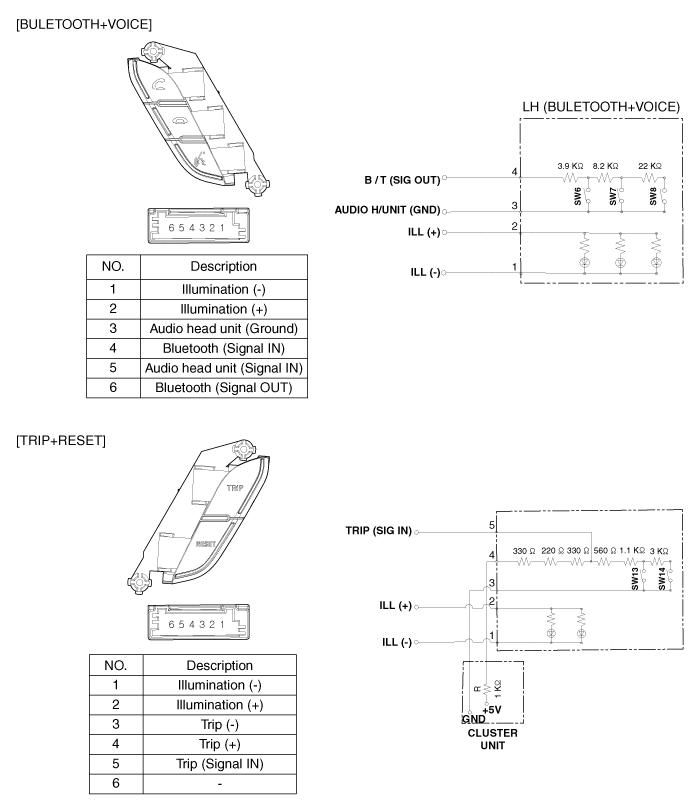

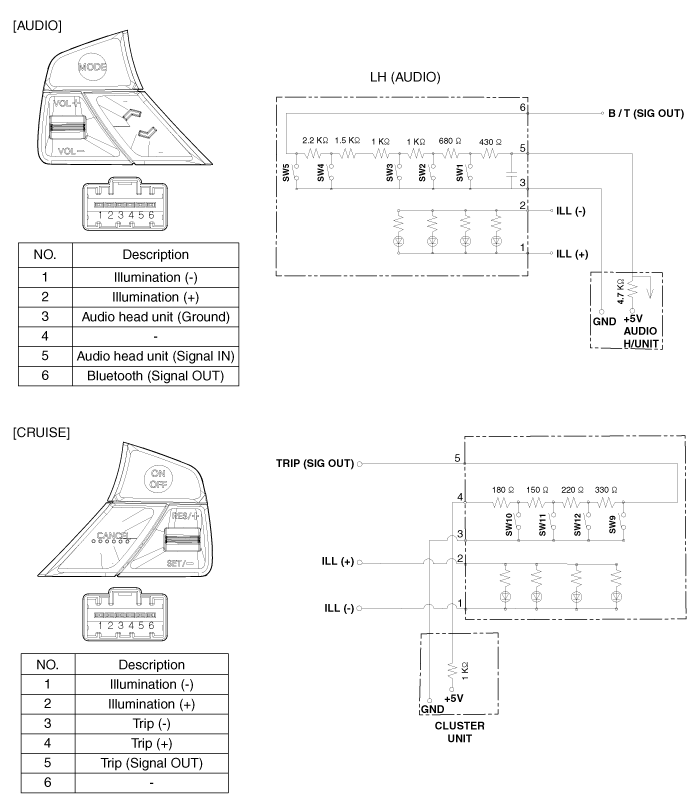

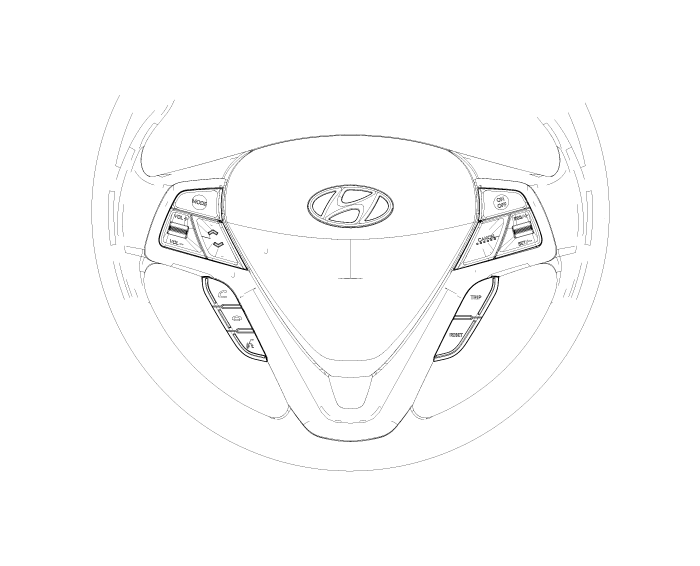

Circuit Diagram


GPS Antenna. Repair procedures
Removal Roof Antenna (GPS) 1. Remove the rear roof trim. (Refer to the BD group - "Roof trim") 2. Disconnect the cables ( ...

AVN Remote Control. Repair procedures
Inspection 1. Check the audio remote control switch (A) for resistance between connector terminals in each switch position. [LH-AUDIO] [RH-TRIP] ...
