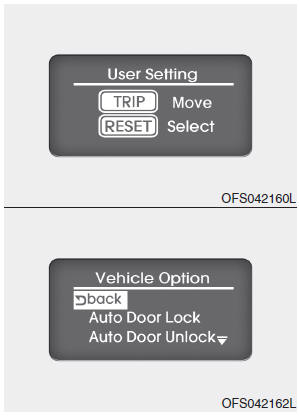

When the vehicle is at a standstill, pressing the TRIP button for more than 2 seconds with the engine start/stop button in the ON position or engine running, the LCD screen on the cluster will change to the vehicle setting mode.
You can change the item by pressing the TRIP button and choose the item by pressing the RESET button.
Auto door lock (if equipped)
Off - The auto door lock operation will be canceled.
Speed - All doors will be automatically locked when the vehicle speed exceeds 15km/h (9.3mph).
Shift Lever - All doors will be automatically locked if the shift lever is shifted from the P(Park) position to the R(Reverse), N(Neutral) or D(Drive) position.
Auto Triple Turn (One-touch triple turn signal) (if equipped)
On - The lane change signals will blink 3 times when the turn signal lever is moved slightly.
Off - The Auto Triple Turn function will be inactivated.
Auto door unlock (if equipped)
Off - The auto door unlock operation will be canceled.
Key Out - All doors will be automatically unlocked when the ignition key is removed from ignition switch (or smart key is removed from the smart key holder).
Shift Lever - All doors will be automatically unlocked if the shift lever is shifted to the P(Park) position.
AVG fuel economy
Auto Reset - The average fuel economy will reset automatically when you drive after refueling.
Manual Reset - The average fuel economy will not reset automatically when you drive after refueling.
Headlamp escort
On - If you turn the ignition switch to the ACC or OFF position with the headlamp ON, the headlamp remain on for about 20 minutes. And the head lamp welcome operation will be activated. Refer to the [LIGHTING] in this chapter.
Off - The headlamp escort and headlamp welcome operation will be canceled.
✽ NOTICE
