Hyundai Veloster: Components and Components Location
First generation (2011–present) / Hyundai Veloster 2010-2018 Service Manual / Steering System / Electric Power Steering / Components and Components Location
First generation (2011–present) / Hyundai Veloster 2010-2018 Service Manual / Steering System / Electric Power Steering / Components and Components Location
Components
|

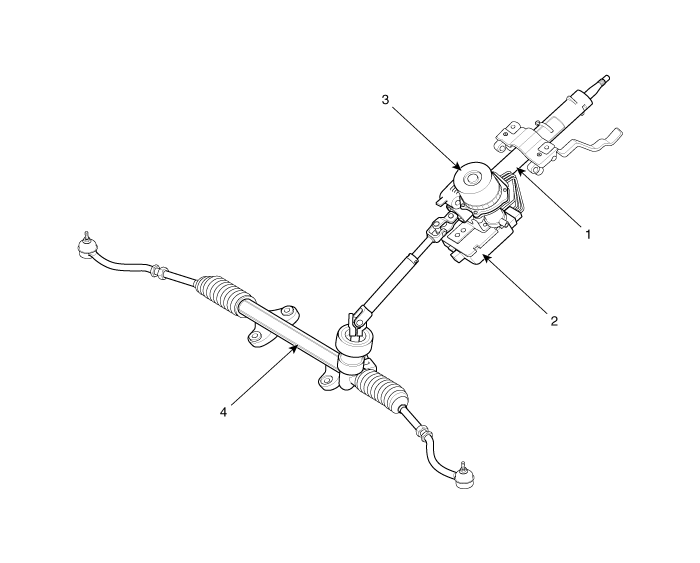

1. Steering column 2. ECU |
3. Motor 4. Steering gear box |
Schematic Diagrams
MDPS Circuit Diagram
Harness Connector
Type
Pin NO
Description
Battery
1
Battery +
2
B ...
