Hyundai Veloster: Instrument cluster
Hyundai Veloster 2011-2017 Owner's Manual / Features of your vehicle / Instrument cluster

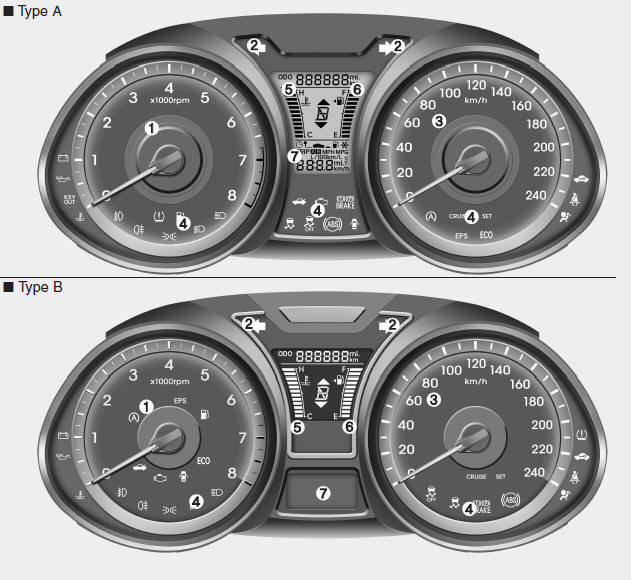

1. Tachometer
2. Turn signal indicators
3. Speedometer
4.Warning and indicator
lights
5. Engine temperature gauge
6. Fuel gauge
7. Odometer/Tripmeter*
* if equipped
❈ The actual cluster in the vehicle may differ from the illustration.
Outside rearview mirror
Be sure to adjust mirror angles before driving.
Your vehicle is equipped with both lefthand and right-hand outside rearview mirrors.
The mirrors can be adjusted remotely with the remote switch. The ...
Instrument panel illumination
Press the illumination control switch to adjust the instrument panel illumination
intensity. For instrument cluster type A, the vehicle’s parking lights or headlights
should be on to adjust th ...
