Hyundai Veloster: Purge Control Solenoid Valve (PCSV). Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: Purge Control Solenoid Valve (PCSV). Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV). Schematic Diagrams

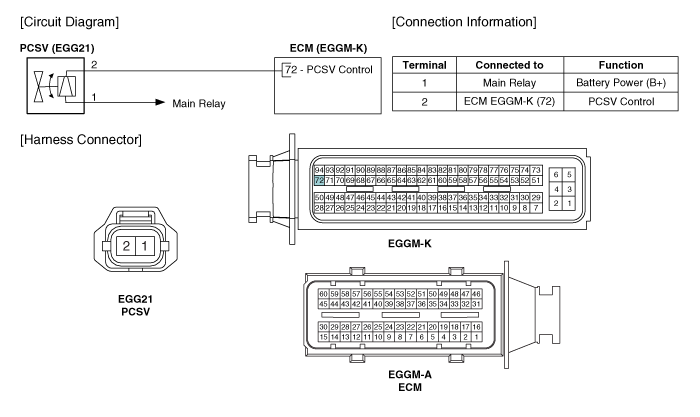

Circuit Diagram


Purge Control Solenoid Valve (PCSV). Specifications
Specification Item Specification Coil Resistance (Ω) 22.0 ~ 26.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between th ...
