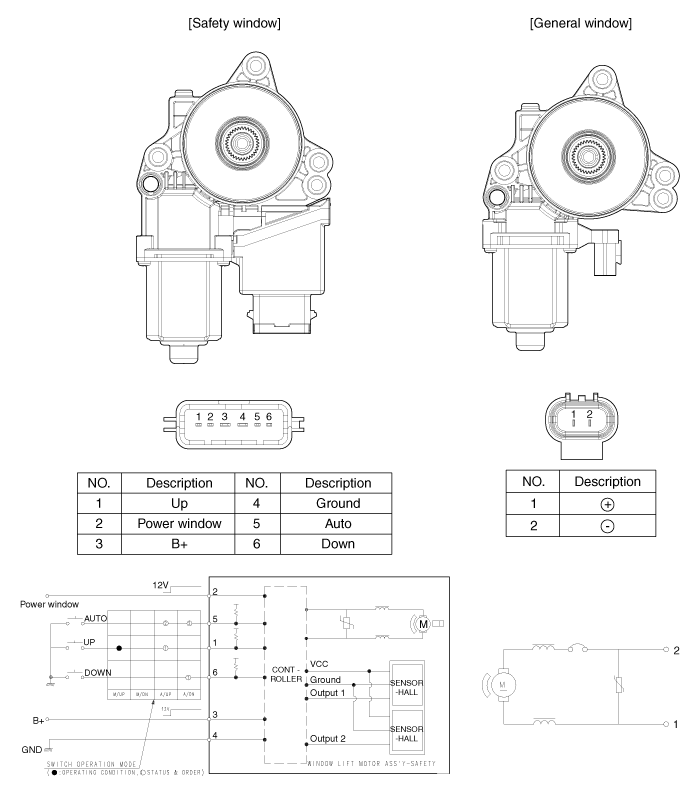

Circuit Diagram
Description and Operation
Operation
Function Of Safety Power Window
When all door (Front, Rear) power window auto-up switch is operated, safety
function is activated.
1.
Safety function condi ...
Power Window Motor. Repair procedures
Inspection
Front Power Window Motor Inspection
1.
Remove the front door trim panel.
(Refer to the BD group - "Front door")
2.
...
