Hyundai Veloster: IPM (Intelligent integrated Platform Module). Schematic Diagrams
First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Body Electrical System / BCM (Body Control Module) / IPM (Intelligent integrated Platform Module). Schematic Diagrams
First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Body Electrical System / BCM (Body Control Module) / IPM (Intelligent integrated Platform Module). Schematic Diagrams

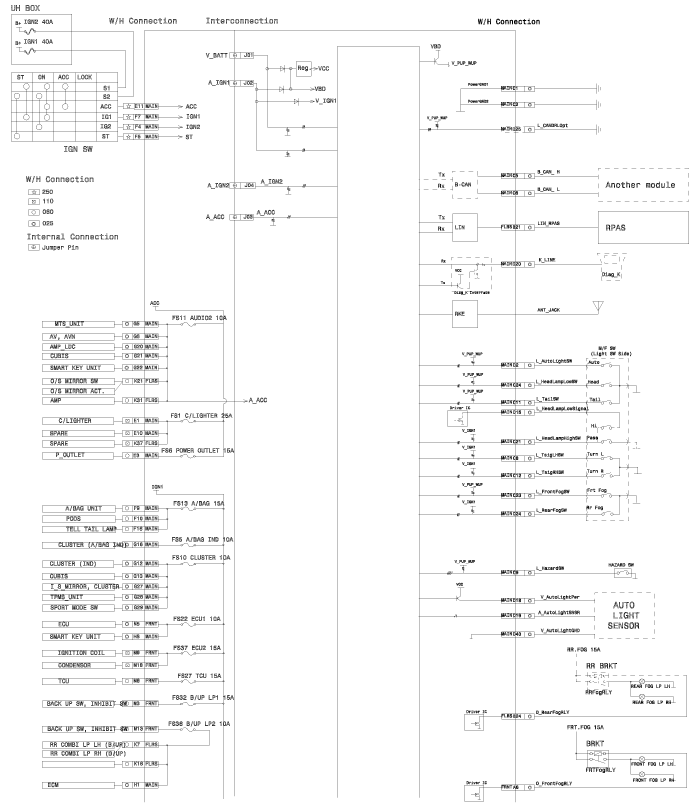

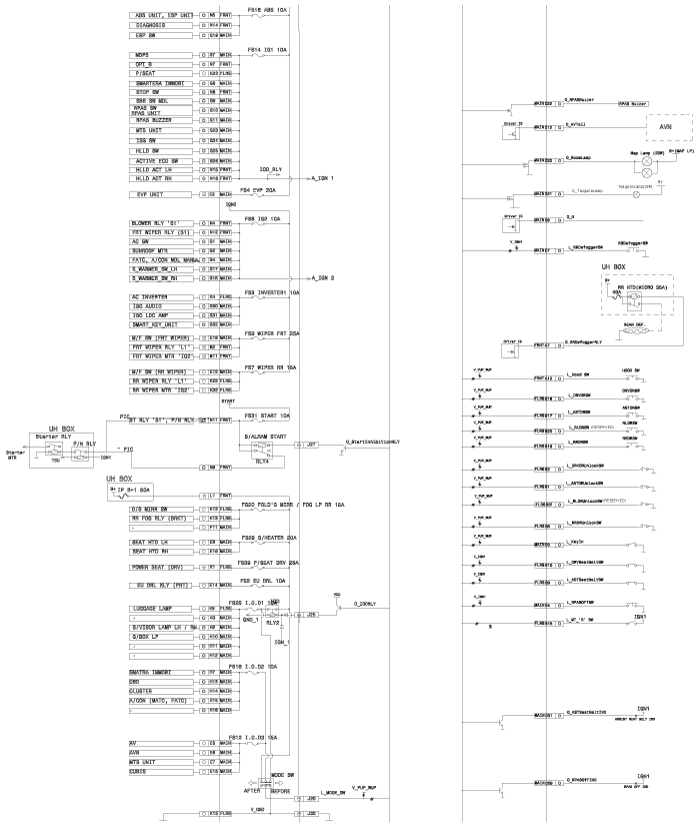

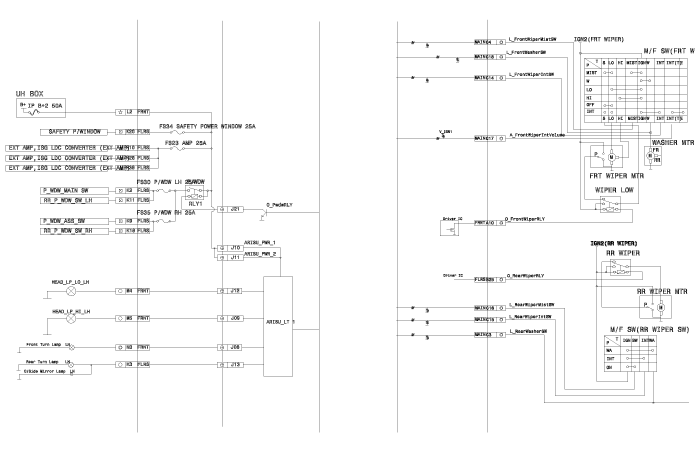

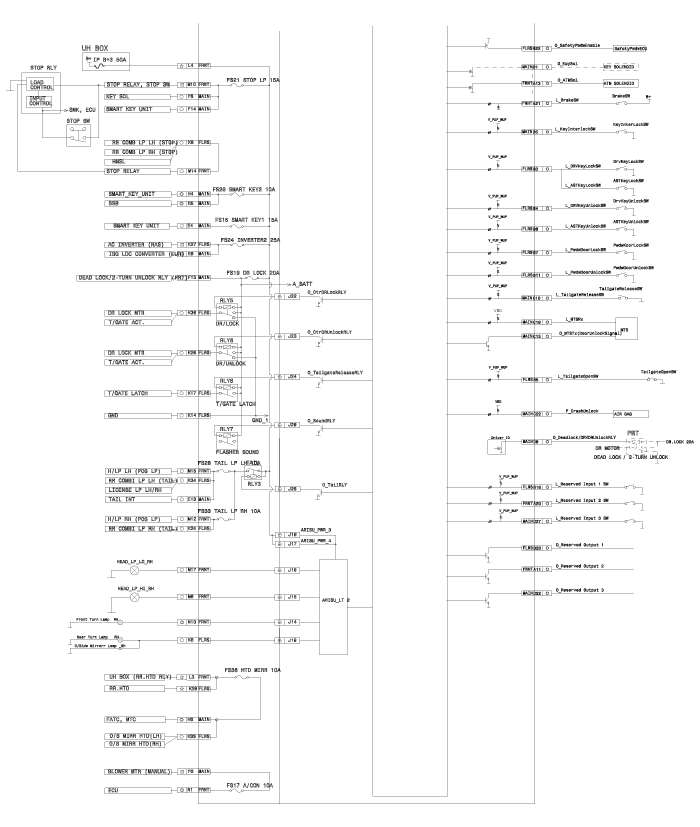

Circuit Diagram
IPM (Intelligent integrated Platform Module). Components and Components Location
Components
※ Internal Buzzer : Rear parking assist system buzzer
Signal Characteristics
Symbol
Name
L_
Logic input
...
