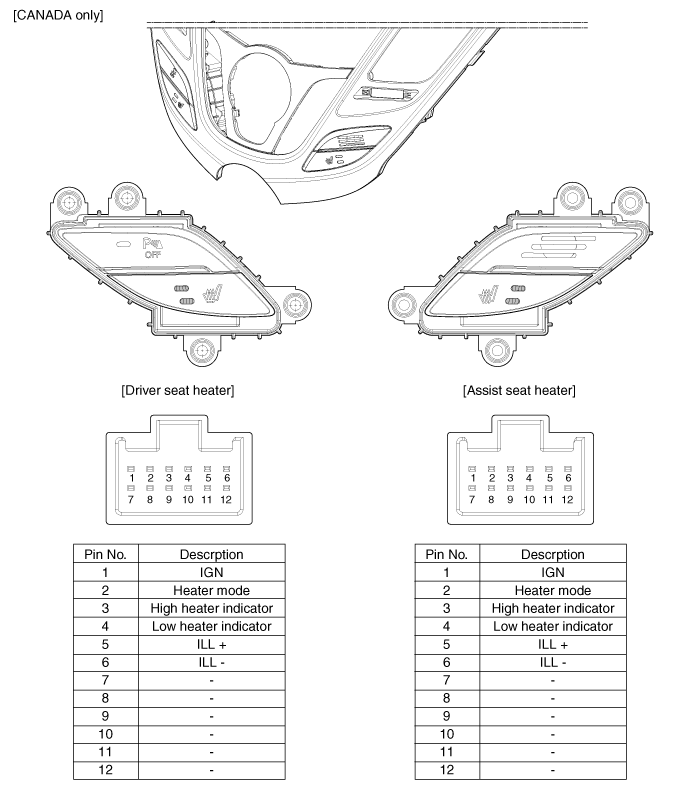

Hyundai Veloster: Seat Heater Switch. Schematic Diagrams

Power Seat Control Switch. Repair procedures

Inspection 1. With the lumbar support switch (A) in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, re ...

Seat Heater Switch. Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad center fascia panel (A). 3. ...
