Hyundai Veloster: IPM (Intelligent integrated Platform Module). Components and Components Location - BCM (Body Control Module) - Body Electrical System - Hyundai Veloster 2010-2018 Service ManualHyundai Veloster: IPM (Intelligent integrated Platform Module). Components and Components Location

First generation (2011–present) / Hyundai Veloster 2010-2018 Service Manual / Body Electrical System / BCM (Body Control Module) / IPM (Intelligent integrated Platform Module). Components and Components Location

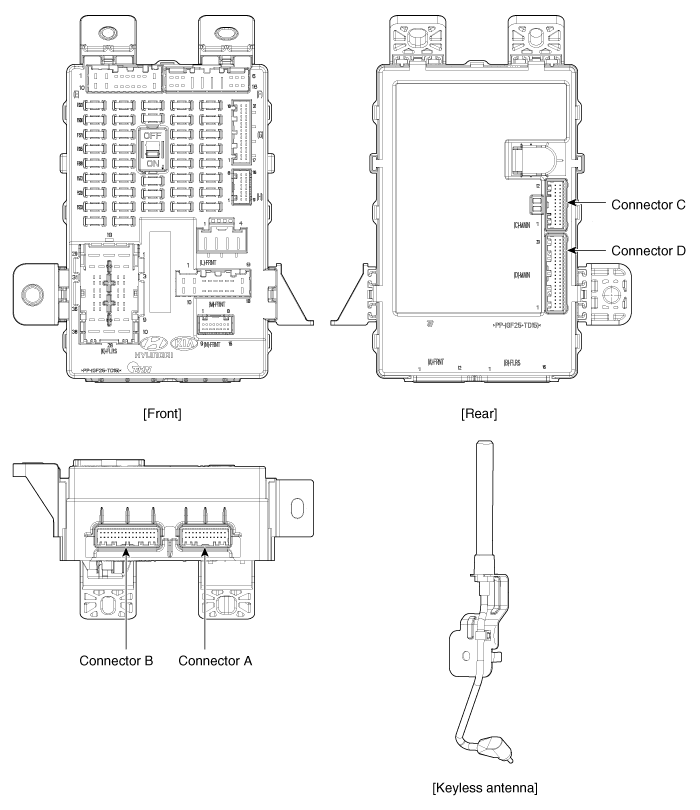

Components

※ Internal Buzzer : Rear parking assist system buzzer

Signal Characteristics
Symbol
Name
L_
Logic input
A_
Analog input
O_
Logic output
C_
CAN signal
S_
Seiral communication
P_
PW signal and frequency signal
D_
Data signal
V_
Power and ground supply
b_
Internal variable
B_
Body

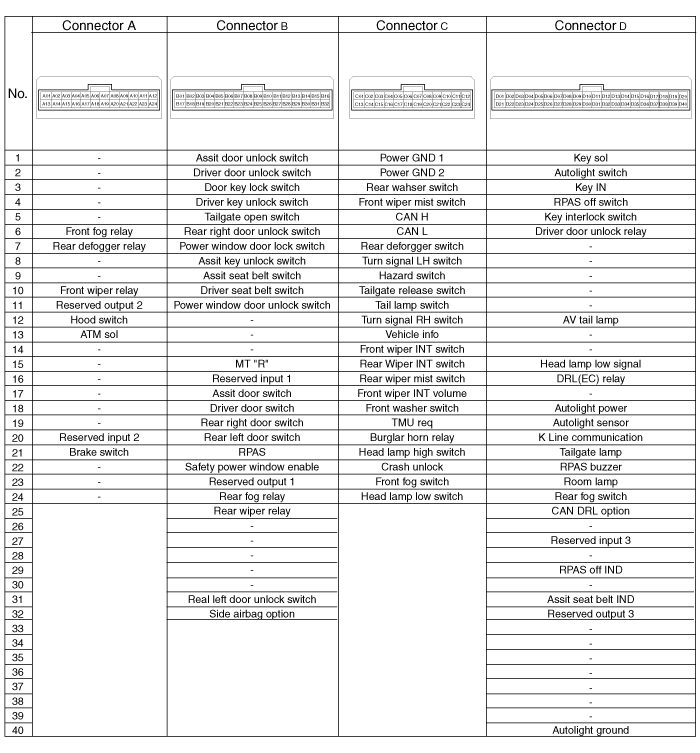

BCM (IPM) Inputs Description and Characteristics
Function
Input Name
State
Voltage level
Low level
High level
Analog input
V_B+
8V ~ 16V


A_AutoLightSnsr
0V ~ 5V


A_FrontWiperIntVolume
0V ~ 5V


A_IGN 1
OPEN/ON
4V or less
7V or more
A_IGN2
OPEN/ON
4V or less
7V or more
A_ACC
OPEN/ON
7.1V or less
7.8V or more
Logic input
L_FrontWiperMistSW
OPEN/ON
2.5V or less
8V or more
L_FrontWiperIntSW
OPEN/ON
2.5V or less
8V or more
L_FrontWasherSW
OPEN/ON
2.5V or less
8V or more
L_RearWiperOnSW
OPEN/ON
2.5V or less
8V or more
L_RearWiperIntT
OPEN/ON
2.5V or less
8V or more
L_RearWasherSW
OPEN/ON
2.5V or less
8V or more
L_BrakeSW
OPEN/ON
2.5V or less
8V or more
L_KeyIn
OPEN/ON
2.5V  or less
6V or more
L_AutoLightSW
OPEN/ON
2.5V  or less
6V or more
L_DRVDRSW
OPEN/ON
2.5V  or less
6V or more
L_ASTDRSW
OPEN/ON
2.5V  or less
6V or more
L_RLDRSW(Reserved)
OPEN/ON
2.5V  or less
6V or more
L_RRDRSW
OPEN/ON
2.5V  or less
6V or more
L_DRVDRUnlockSW
OPEN/ON
2.5V  or less
6V or more
L_ASTDRUnlockSW
OPEN/ON
2.5V  or less
6V or more
L_RLDRUnlockSW(Reserved)
OPEN/ON
2.5V  or less
6V or more
L_RRDRUnlockSW
OPEN/ON
2.5V  or less
6V or more
L_TailgateOpenSW
OPEN/ON
2.5V  or less
6V or more
L_HoodSW
OPEN/ON
2.5V  or less
6V or more
L_DoorKeyLockSW
OPEN/ON
2.5V  or less
6V or more
L_DRVKeyUnlockSW
OPEN/ON
2.5V  or less
6V or more
L_ASTKeyUnlockSW
OPEN/ON
2.5V  or less
6V or more
L_TailgateReleaseSW
OPEN/ON
2.5V  or less
6V or more
L_PwdwDoorLockSW
OPEN/ON
2.5V  or less
6V or more
L_PwdwDoorUnlockSW
OPEN/ON
2.5V  or less
6V or more
L_RRDefogger SW
OPEN/ON
2.5V  or less
6V or more
L_RPASOffSW
OPEN/ON
2.5V  or less
6V or more
Logic input
L_KeyInterlockSW
OPEN/ON
2.5V  or less
6V or more
L_DRVSeatBeltSW
OPEN/ON
2.5V  or less
6V or more
L_ASTSeatBeltSW
OPEN/ON
2.5V  or less
6V or more
L_HazardSW
OPEN/ON
2.5V  or less
6V or more
L_TsigLHSW
OPEN/ON
2.5V  or less
6V or more
L_TsigRHSW
OPEN/ON
2.5V  or less
6V or more
L_TailSW
OPEN/ON
2.5V  or less
6V or more
L_HeadLampLowSW
OPEN/ON
2.5V  or less
6V or more
L_HeadLampHighSW
OPEN/ON
2.5V  or less
6V or more
L_FronFSogSW
OPEN/ON
2.5V  or less
6V or more
L_RearFogSW
OPEN/ON
2.5V  or less
6V or more
L_CANDRLOptSW
OPEN/ON
2.5V  or less
6V or more
L_SAB OPT
OPEN/ON
2.5V  or less
6V or more
L_MTSRx
OPEN/ON
2.5V  or less
6V or more
L_MT "R"
OPEN/ON
2.5V  or less
8V or more
L_ModeSW
OPEN/ON
2.5V  or less
6V or more
L_ReservedInput1
OPEN/ON
2.5V  or less
6V or more
L_ReservedInput2
OPEN/ON
2.5V  or less
6V or more
L_ReservedInput3
OPEN/ON
2.5V  or less
6V or more
Frequency
P_CrashUnlock

PWM(Low)
VBD
Communication
LIN_RPAS

LIN
IGN
K_LINE

DIAG
B+
CAN_H

Low CAN
B+
CAN_L

Low CAN
B+

BCM (IPM) Outputs Description and Characteristics
Pin description
State
capacity
Power source
O_FrontWiperRLY
FRONT WIPER RELAY output
DC 12V 200mA(inductive load)
IGN2
O_RearWiperRLY
REAR WIPER RELAY output
DC 12V 200mA(inductive load)
IGN2
O_PwdwRLY
POWER WINDOW RELAY output
DC 12V 200mA(inductive load)
B+
O_SafetyPwdwEnable
SAFETY POWER WINDOW ENABLE output
-
B+
O_CtrDRLockRLY
C/DOOR LOCK RELAY output
DC 12V 200mA(inductive load)
B+
O_CtrDRUnlockRLY
C/DOOR UNLOCK RELAY output
DC 12V 200mA(inductive load)
B+
O_DRVDRUnlockRLY
DRIVER DOOR UNLOCK RELAY output
DC 12V 200mA(inductive load)
B+
O_TailgateReleaseRLY
TRUNK RELEASE RELAYoutput
DC 12V 200mA(inductive load)
B+
O_StartInhibitionRLY
O_START INHIBIT RELAY output
DC 12V 200mA(inductive load)
ST
O_BurglarHornRLY
BURGLAR ALARM HORN RELAY output
DC 12V 200mA(inductive load)
B+
O_MTSTx (DoorUnlockSignal)
MTSTx output
-
B+
O_ASTSeatBeltIND
ASSIST SEAT BELT INDICATOR output
-
IGN1
O_RPASOffIND
RPAS operating INDICATOR output
-
IGN1
O_RPASBuzzer
EXTERNAL BUZZER output

IGN1
O_TurnSigFL
LH Front Turn Signal Lampoutput
DC 12V 27W LAMP
B+
O_TurnSigRL
LH Rear Turn Signal Lampoutput
DC 12V 27W LAMP
B+
O_TurnSigFR
RH Front Turn Signal Lampoutput
DC 12V 27W LAMP
B+
O_TurnSigRR
RH Rear Turn Signal Lampoutput
DC 12V 27W LAMP
B+
O_AVTail
AV TAIL output signal

B+
O_RearFogRLY
REAR FOG LAMP RELAY output
DC 12V 200mA(inductive load)
B+
O_TailLampRLY
TAIL LAMP LAMP RELAY output
DC 12V 200mA(inductive load)
B+
O_FronFSogRLY
FRONT FOG LAMP RELAY output
DC 12V 200mA(inductive load)
B+
O_HeadLampLowLH
HEAD LAMP LOW LH output
DC 12V 55W LAMP
B+
O_HeadLampLowRH
HEAD LAMP LOW RH output
DC 12V 55W LAMP
B+
O_HeadLampHighLH
HEAD LAMP HIGH LH output
DC 12V 55W LAMP
B+
O_HeadLampHighRH
HEAD LAMP HIGH RH output
DC 12V 55W LAMP
B+
O_HeadLampLowSignal
HEAD LAMP LOW Signal output to MF SW


O_DRL(EC)RLY
DRL RLY(Europe) output
DC 12V 200mA(inductive load)
B+
O_RoomLamp
ROOM LAMP output
DC 12V 30W LAMP(10W*3)
B+
O_RRDefoggerRLY
REAR DEFOGGER RELAY output
DC 12V 200mA(inductive load)
B+
O_KeySol
KEY INTERLOCK SOLENOID output
DC 12V 1A (inductive load)
B+
O_ATMSol
ATM SHIFT SOLENOID output
DC 12V 200mA (inductive load)
B+
O_SoundRelayCtrl
Sound Relay control
DC 12V 200mA(inductive load)
B+
O_ReservedOutput1
Reserved output


O_ReservedOutput2
Reserved output


O_ReservedOutput3
Reserved output


O_IOD_RLY
DART CURRNET AUTO SHUT OFF IPS ON/OFF control
DC 12V 200mA(inductive load)
B+

BCM (IPM) Input Signal Specification
No
Signal Name
Description
ON/OFF
LEVEL(V)
Remark
A01
L_B+
ON = BAT
IPM (Intelligent integrated Platform Module). Specifications
Specifications Items Specifications Rated voltage DC 12V Operating voltage DC 9 ~ 16V Operating temp ...
