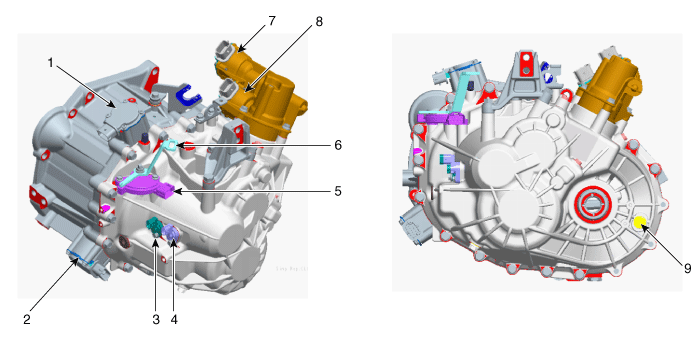

Components
|
1. Odd clutch actuator motor 2. Even clutch actuator motor 3. Input shaft speed sensor 2 4. Intput shaft speed sensor 1 5. Inhibitor switch |
6. Manual control lever 7. Shift motor 8. Select motor 9. Filler plug |

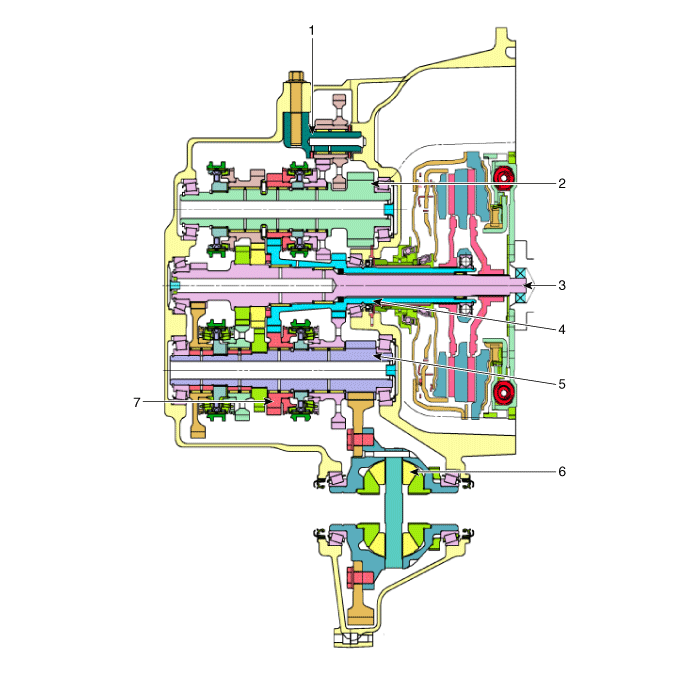

Cross Sectional Drawing
|
1. Reverse Idler shaft 2. 5/6/R output shaft 3. 1/3/5 input shaft 4. 2/4/6/R input shaft |
5. 1/2/3/4 output shaft 6. Differential Assembly 7. Parking gear |
Dual Clutch Transmission(DCT) > Repair procedures
Removal
1.
Remove the following parts first:
A.
Engine cover (A)
(Refer to the Intake and Exhaust System of EM Group.)
...
