Components
|

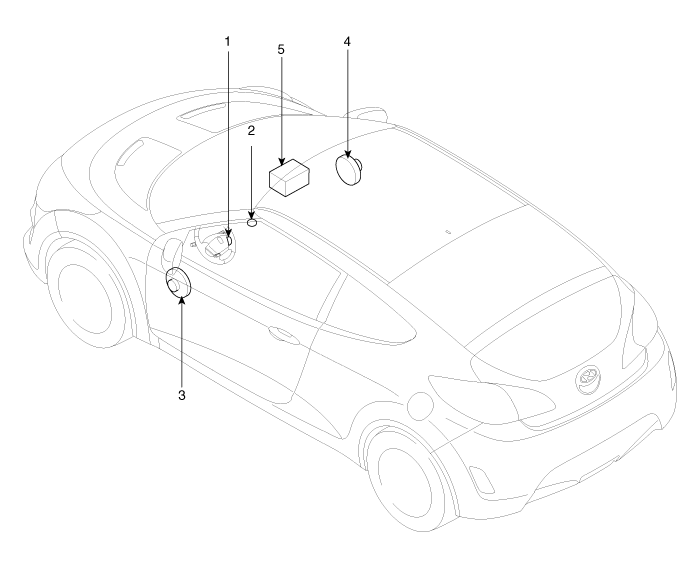

1. Hands free call switch 2. Mic 3. Front left speaker |
4. Front right speaker 5. Audio head unit (hands free control) |
|
※ There is no hands free jack. This system supports Bluetooth(wireless
system). |
Hands Free Switch. Schematic Diagrams
Circuit Diagram
...
See also:
Multimedia Jack. Repair procedures
Removal
1.
Remove the floor console assembly.
(Refer to the BD group - "Console")
2.
Remove the multimedia jack assembly (A). ...
Components and Components Location
Component Location
1. A/C relay
2. Fuel pump relay
3. Rear wiper relay
4. Blower relay
5. Buglar alarm horn realy
6. Front wiper relay
7. Starter relay
...
Fuses
A vehicle’s electrical system is protected from electrical overload damage by
fuses.
This vehicle has 2 fuse panels, one located in the driver’s side panel bolster,
the other in the engine comp ...
