Hyundai Veloster: Hands Free Switch. Schematic Diagrams
Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Hands Free System / Hands Free Switch. Schematic Diagrams

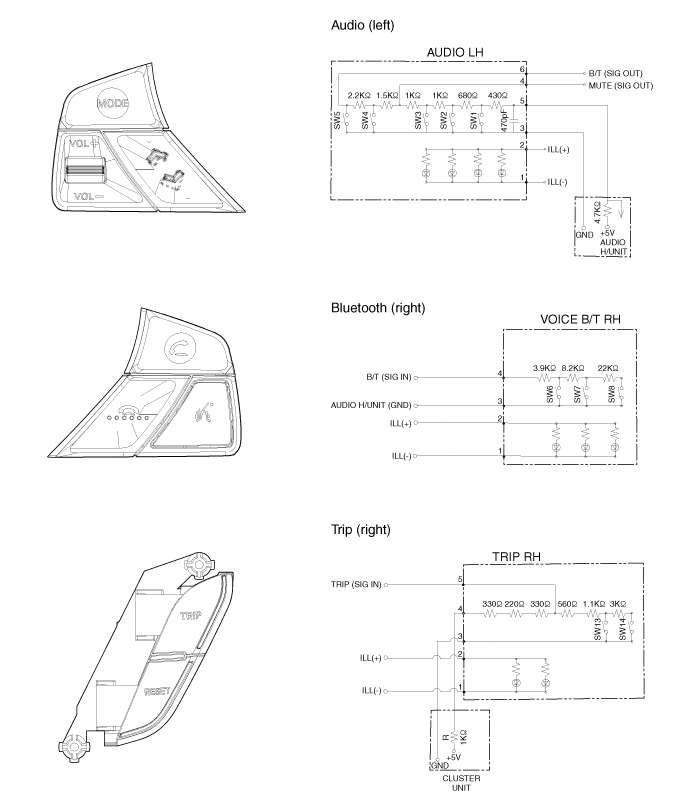

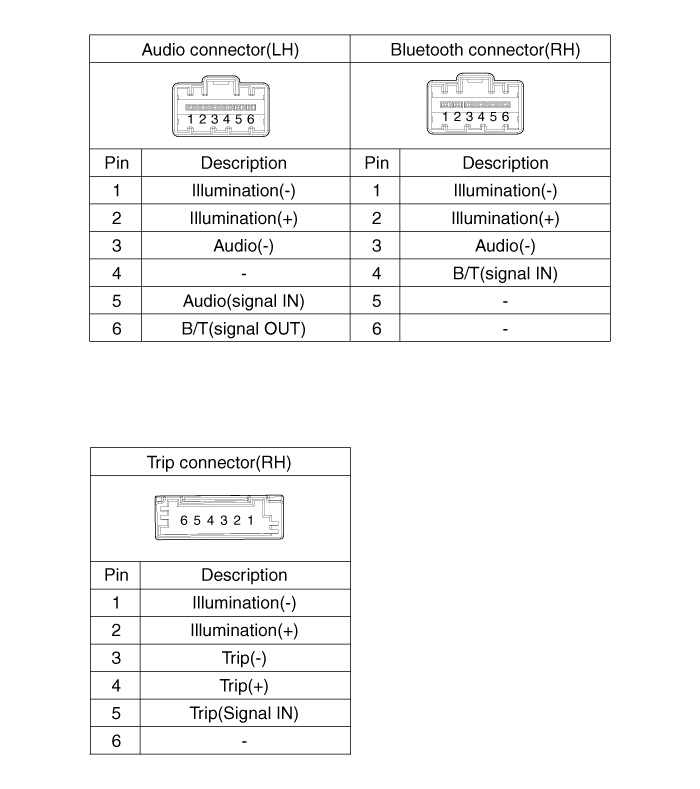

Circuit Diagram
Components and Components Location
Components
1. Hands free call switch
2. Mic
3. Front left speaker
4. Front right speaker
5. Audio head unit (hands free control)
R ...
Hands Free Switch. Repair procedures
Inspection
1.
Check the hands free remote control switch for resistance between
terminals in each switch position.
Switch
...
