Component Location
|

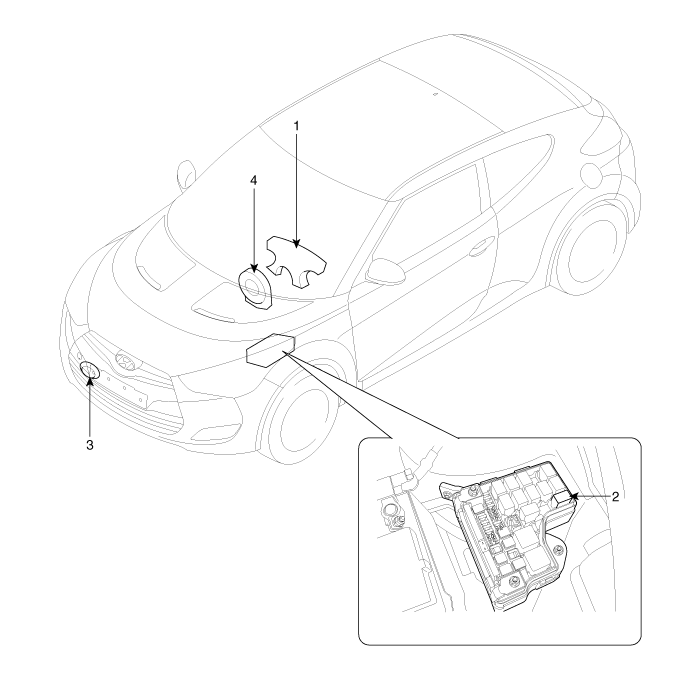

1. Horn switch 2. Horn relay (Engine room compartment) |
3. Horn 4. Clock spring |
Horn
...
Repair procedures
Inspection
Test the horn by connecting battery voltage to the 1 terminal and ground
the 2 terminal.
The horn should make a sound. If the horn fails to make a sound, replace
it.
