Hyundai Veloster: Back-up Lamp Switch. Repair procedures - Manual Transaxle Control System - Manual Transaxle System (M6CF1)Hyundai Veloster: Back-up Lamp Switch. Repair procedures

Inspection

1.
Disconnect the back up lamp switch connector (A).

2.

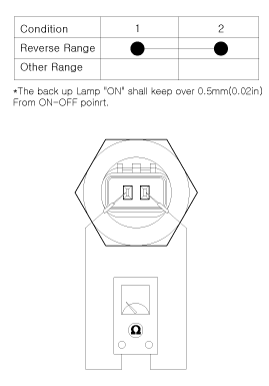

Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
3.
If necessary, repair or replace the backup lamp switch.


Replacement

1.
Disconnect the back up lamp switch connector (A).

2.
Remove the back up lamp switch (A).

3.
Replace a new one and install the back up lamp switch.

Tightening torque:
29.4 ~ 34.3 N.m (3.0 ~ 3.5 kgf.m, 21.7 ~ 25.3 lb-ft)


Back-up Lamp Switch. Specifications
Specifications 1. Working voltage: DC 10~15V 2. Operating force: 3.0kg Max. 3. Voltage drop: - 0.4V ...
