Hyundai Veloster: Wipers and washers
Hyundai Veloster 2011-2017 Owner's Manual / Features of your vehicle / Wipers and washers

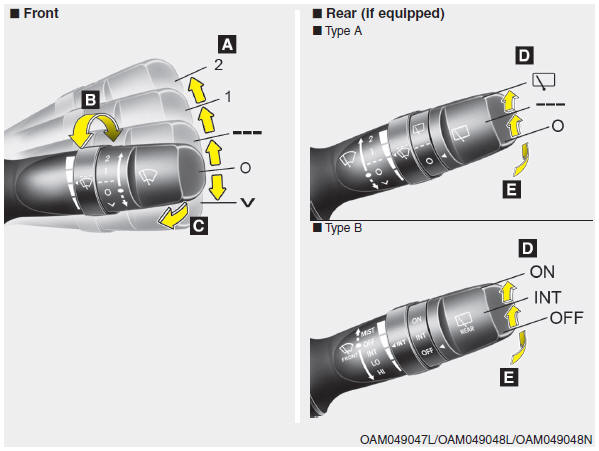

A :Wiper speed control (front) · 2 – High wiper speed · 1 – Low wiper speed ·
--- – Intermittent wipe · AUTO* – Automatic control wipe · O – Off ·
– Single wipe
B : Intermittent control wipe time adjustment
C :Wash with brief wipes (front)
D : Rear wiper/washer control ·
– Continuous wipe · --- – Intermittent wipe · O – Off
E :Wash with brief wipes (rear)
* : if equipped
Front fog light
Fog lights are used to provide improved visibility when visibility is poor due
to fog, rain or snow etc. The fog lights will turn on when fog light switch (1)
is turned to ON after the headlight ...
Windshield wipers
Operates as follows when the ignition switch is turned ON.
: For a single wiping cycle, move
the lever to this position and release it. The wipers will operate continuously
if the lever is held i ...
