Hyundai Veloster: Rear Wheel Speed Sensor. Components and Components Location - ESC(Electronic Stability Control) System - Brake SystemHyundai Veloster: Rear Wheel Speed Sensor. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Brake System / ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor. Components and Components Location

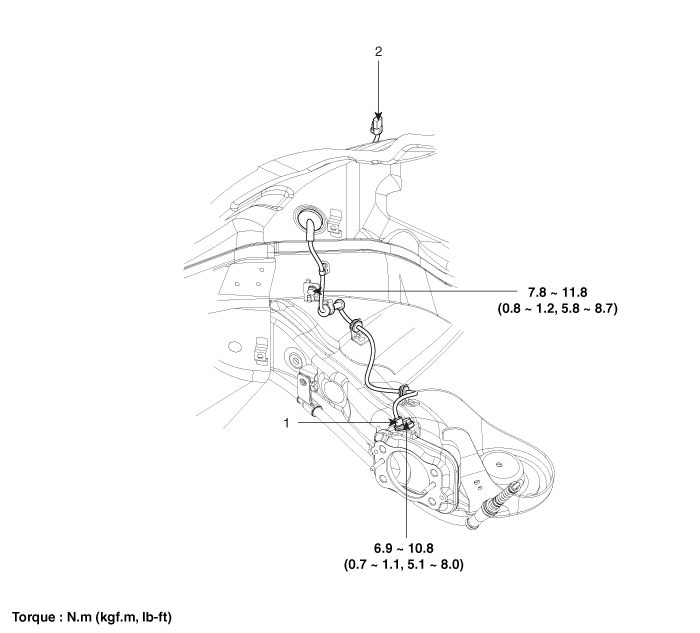

Components

1. Rear wheel speed sensor
2. Rear wheel speed sensor connector
