Hyundai Veloster: Parts

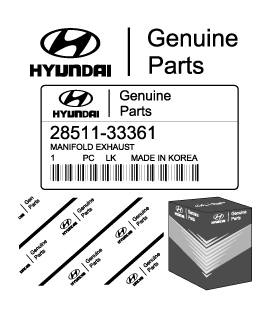

When replacing parts, use HYUNDAI genuine parts.
Replacement
Standard values, such as torques and certain adjustments, must be strictly
observed in the reassembly of all parts.
If removed, the following parts should always be replaced with new ones.
| 1. |
Oil seals
|
| 2. |
Gaskets
|
| 3. |
O-rings
|
| 4. |
Lock washers
|
| 5. |
Cotter pins (split pins)
|
| 6. |
Plastic nuts
Depending on their location.
|
| 7. |
Sealant should be applied to gaskets.
|
| 8. |
Oil should be applied to the moving components of parts.
|
| 9. |
Specified oil or grease should be applied to the prescribed locations
(oil seals, etc) before assembly.
|
Adjustment
Use gauges and testers to adjust correctly the parts to standard values
correctly.
Preparation Of Tools And Measuring Equipment
Be sure that all necessary tools and measuring equipment are available
starting work.
Special Tools
Use special tools when they are required.
Removal Of Parts
First find the cause ...
