Hyundai Veloster: Multimedia Jack. Description and Operation - AVN System - Body Electrical SystemHyundai Veloster: Multimedia Jack. Description and Operation

Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / AVN System / Multimedia Jack. Description and Operation

Description

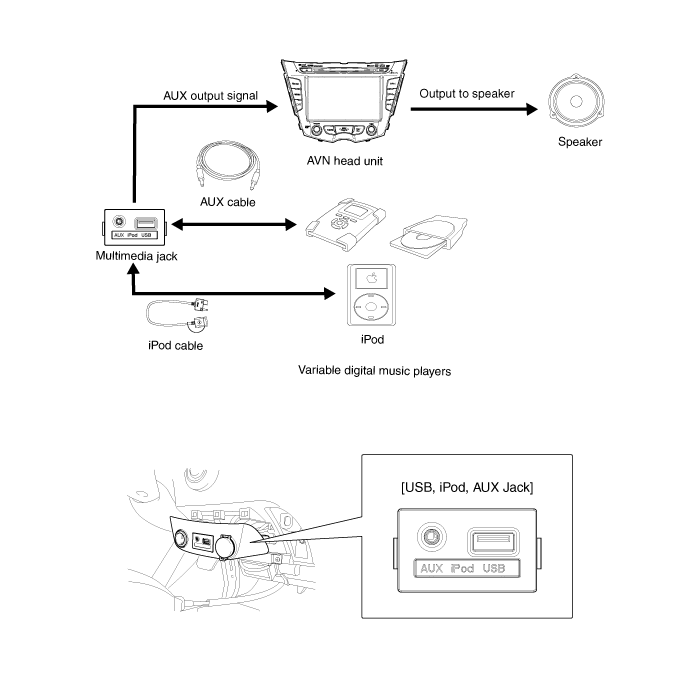

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.
In case of distortions from media connected to the AUX source, the audio unit may not be defective but the output level of the used media does not match the specification of the AUX input.


Multimedia Jack. Schematic Diagrams
Circuit Diagram ...

Multimedia Jack. Repair procedures
Removal 1. Remove the floor console assembly. (Refer to the BD group - "Console") 2. Remove the multimedia jack assembly (A). ...
