Hyundai Veloster: Front Strut Assembly. Components and Components Location - Front Suspension System - Suspension SystemHyundai Veloster: Front Strut Assembly. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Suspension System / Front Suspension System / Front Strut Assembly. Components and Components Location

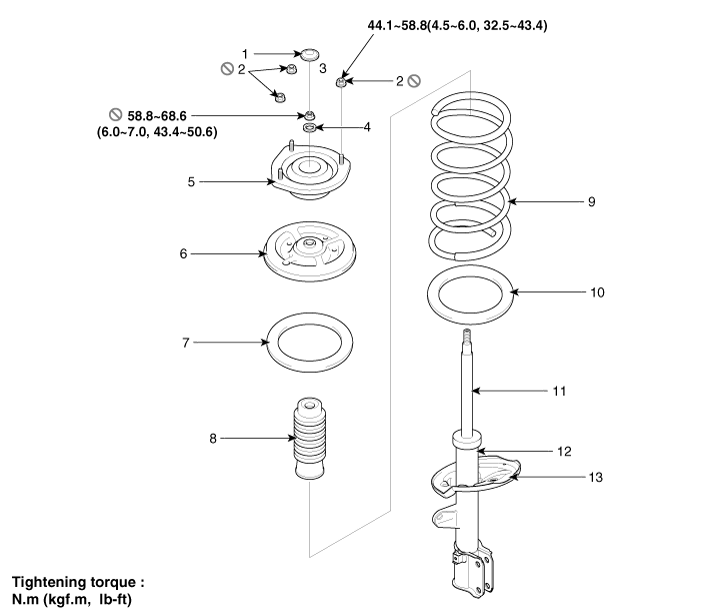

Components

•
Tighten under unladen condition
•
Fix the strut rod end and tighten the nut
1. Dust cover
2. Upper mounting nuts
3. Self-lock nut
4. Space
5. Insulator
6. Spring upper seat
7. Spring upper pad
7. Spring upper pad
8. Dust cover & Bumper rubber
9. Coil spring
10. Spring lower pad
11. Piston rod
12. Strut assembly
13. Spring lower seat


Components and Components Location
Components Location [LHD] 1. Drive shaft 2. Lower arm 3. Front disc 4. Front strut assembly 5. Steering gearbox 6. Stabilizer bar 7. Sub fram ...

Front Strut Assembly. Repair procedures
Replacement 1. Remove the front wheel & tire. Tightening torque : 88.3 ~ 107.9N.m(9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft) ...
