Component Location
|

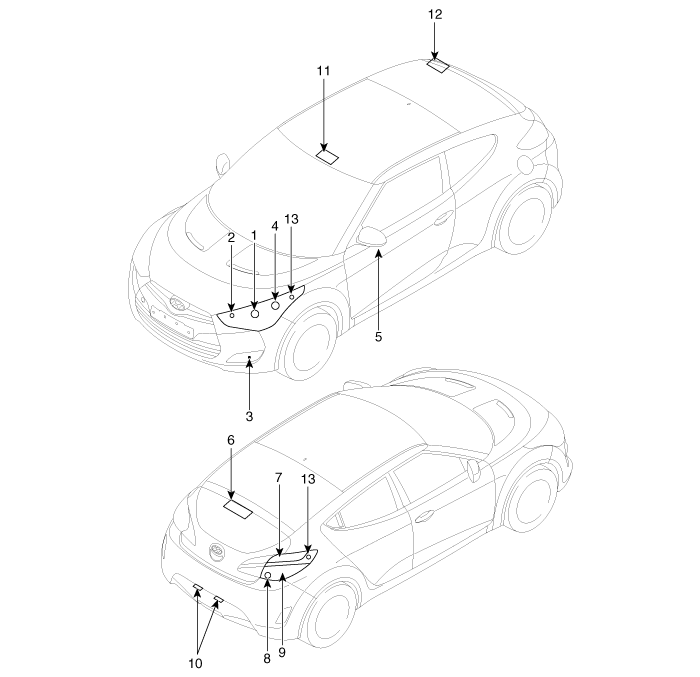

1. Head lamp (High) 2. Turn signal lamp 3. Front fog lamp 4. Head lamp(Low)/ position lamp 5. Turn signal lamp (Door mirror) 6. High mounted stop lamp 7. Tali/ stop lamp |
8. Backup lamp 9. Turn signal lamp 10. License lamp 11. Overhead lamp 12. Luggage lamp 13. Side marker lamp |
Specifications
Specification
Item
Bulb capacity(W)
Lamp type
Front
Head lamp(High)
55
H7LL
Head lamp(low)
...
Head Lamps. Components and Components Location
Component
1. Head lamp assembly lens & housing
2. Head lamp (Low) lamp
3. Dust cover (Low)
4. Turn signal lamp
5. Head lamp (High) lamp
6. Dust cover (Hi ...
