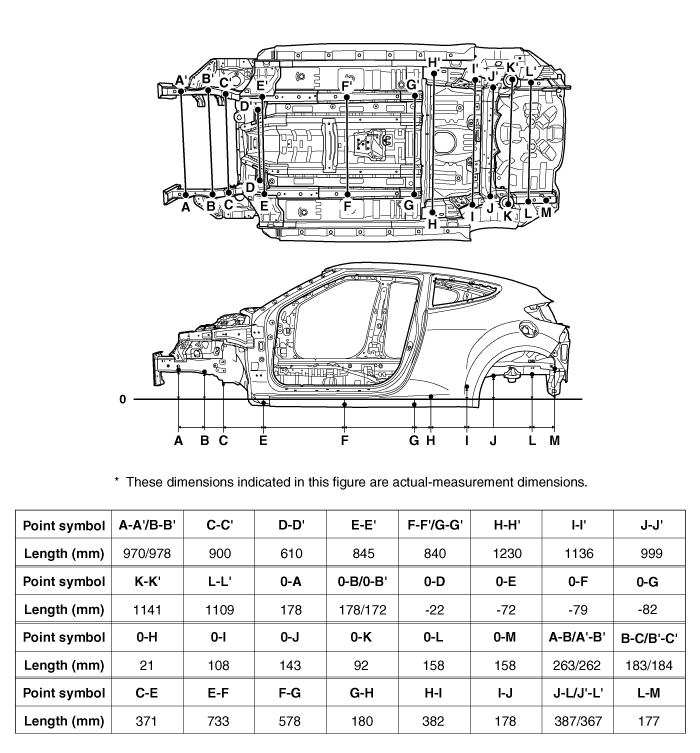

Projected Dimensions
|
|
|
|
|
Front side member tooling hole (Ø6.6) |
Front side member tooling hole (Ø6.6) |
Side cover mounting hole (Ø8.6) |
|
|
|
|
|
Side cover mounting hole (Ø10) |
Sub frame mounting bolt |
Sub frame mounting hole (Ø22) |
|
|
|
|
|
Front side member tooling hole (Ø11) |
Center floor side member tooling hole (Ø8) |
Center floor side member extension tooling hole (Ø7) |
|
|
|
|
|
Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø10) |
|
|
|
|
|
Rear floor center cross member tooling hole (Ø10) |
Rear spring stopper bracket hole (Ø9) |
Rear floor side member tooling hole (L/L' : Ø7/Ø10) |
|
|
|
|
|
Rear floor side member tooling hole (Ø8) |
|
|

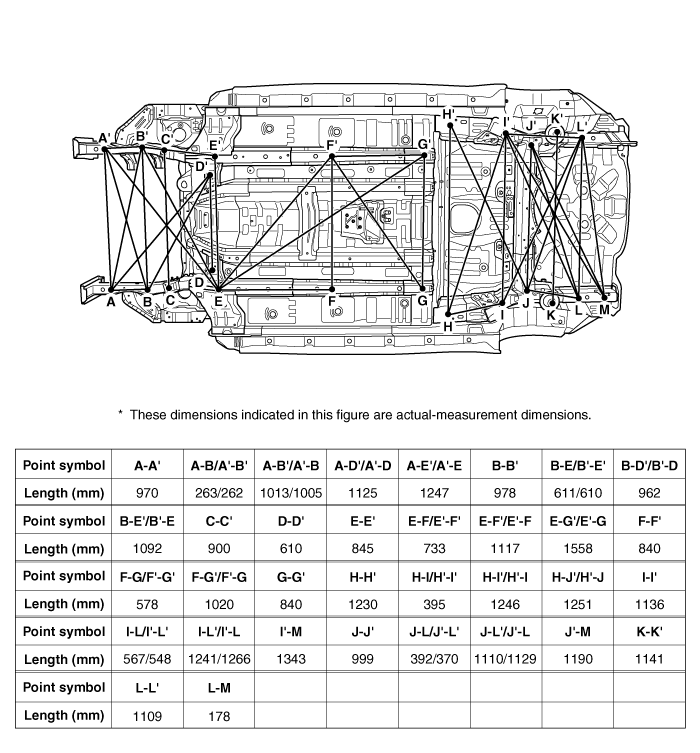

Actual-Measurement Dimensions
|
|
|
|
|
Front side member tooling hole (Ø6.6) |
Front side member tooling hole (Ø6.6) |
Side cover mounting hole (Ø8.6) |
|
|
|
|
|
Side cover mounting hole (Ø10) |
Sub frame mounting bolt |
Sub frame mounting hole (Ø22) |
|
|
|
|
|
Front side member tooling hole (Ø11) |
Center floor side member tooling hole (Ø8) |
Center floor side member extension tooling hole (Ø7) |
|
|
|
|
|
Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø10) |
|
|
|
|
|
Rear floor center cross member tooling hole (Ø10) |
Rear spring stopper bracket hole (Ø9) |
Rear floor side member tooling hole (L/L' : Ø7/Ø10) |
|
|
|
|
|
Rear floor side member tooling hole (Ø8) |
|
|
Rear Body. Body Repair
Roof panel rear corner
Tail gate hinge mounting hole (Ø12)
Side outer panel rear corner
...
