Hyundai Veloster: Schematic Diagrams
First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Restraint (Depowered) / SRSCM / Schematic Diagrams

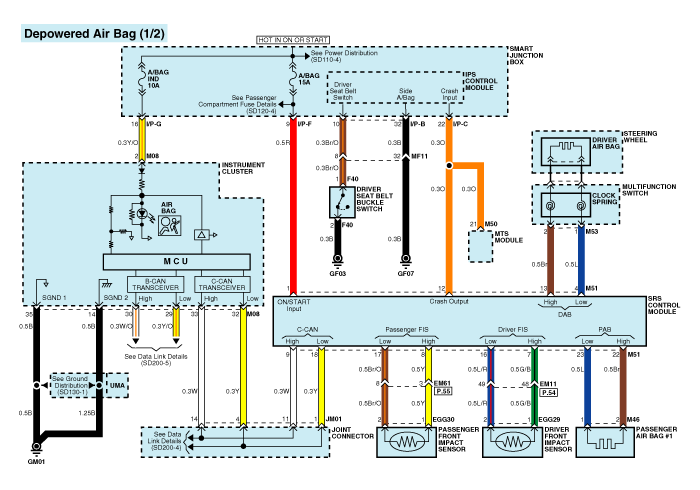

Circuit Diagram (1)

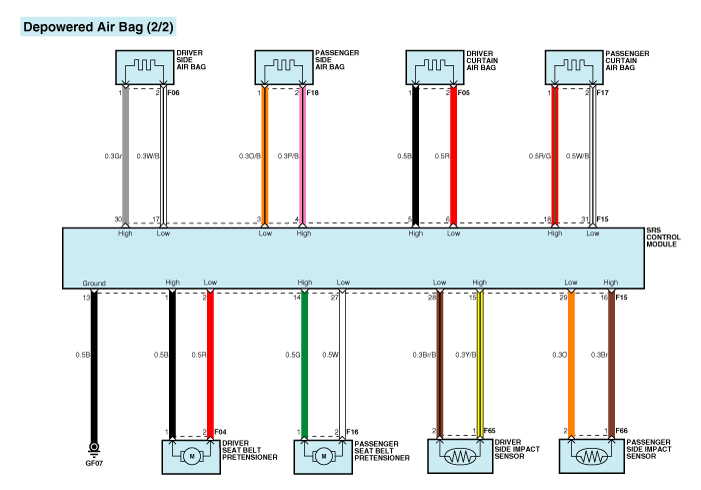

Circuit Diagram (2)

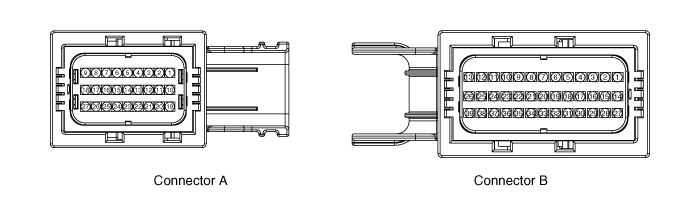

SRSCM Connector terminal
|
Pin |
Function (Connector A) |
Pin |
Function (Connector B) |
|
1 |
Ignition |
1 |
Seat belt pretensioner [Driver] High |
|
2 |
- |
2 |
Seat belt pretensioner [Driver] Low |
|
3 |
- |
3 |
Side Airbag [Passenger] Low |
|
4 |
(1st stage) Driver airbag Low |
4 |
Side Airbag [Passenger] High |
|
5 |
- |
5 |
Curtain Airbag [Driver] High |
|
6 |
- |
6 |
Curtain Airbag [Driver] Low |
|
7 |
Front impact sensor [Driver] High |
7 |
- |
|
8 |
Front impact sensor [Passenger] High |
8 |
- |
|
9 |
CAN_High |
9 |
- |
|
10 |
- |
10 |
- |
|
11 |
- |
11 |
- |
|
12 |
Crash Output |
12 |
- |
|
13 |
(1st stage) Driver airbag High |
13 |
Ground |
|
14 |
- |
14 |
Seat belt pretensioner [Passenger] High |
|
15 |
- |
15 |
Side impact sensor [Driver] High |
|
16 |
Front impact sensor [Driver] Low |
16 |
Side impact sensor [Passenger] High |
|
17 |
Front impact sensor [Passenger] Low |
17 |
Side Airbag [Driver] Low |
|
18 |
CAN_Low |
18 |
Curtain Airbag [Passenger] High |
|
19 |
- |
19 |
- |
|
20 |
- |
20 |
- |
|
21 |
- |
21 |
- |
|
22 |
(1st stage) Passenger airbag High |
22 |
- |
|
23 |
(1st stage) Passenger airbag Low |
23 |
- |
|
24 |
- |
24 |
- |
|
25 |
- |
25 |
- |
|
26 |
- |
26 |
- |
|
27 |
- |
27 |
Seat belt pretensioner [Passenger] Low |
|
|
|
28 |
Side impact sensor [Driver] Low |
|
|
|
29 |
Side impact sensor [Passenger] Low |
|
|
|
30 |
Side Airbag [Driver] High |
|
|
|
31 |
Curtain Airbag [Passenger] Low |
|
|
|
32 |
- |
|
|
|
33 |
- |
|
|
|
34 |
- |
|
|
|
35 |
- |
|
|
|
36 |
- |
|
|
|
37 |
- |
|
|
|
38 |
- |
|
|
|
39 |
- |
