Hyundai Veloster: Rear Hub - Carrier. Components and
Components Location - Rear Axle Assembly - Driveshaft and axleHyundai Veloster: Rear Hub - Carrier. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier. Components and Components Location

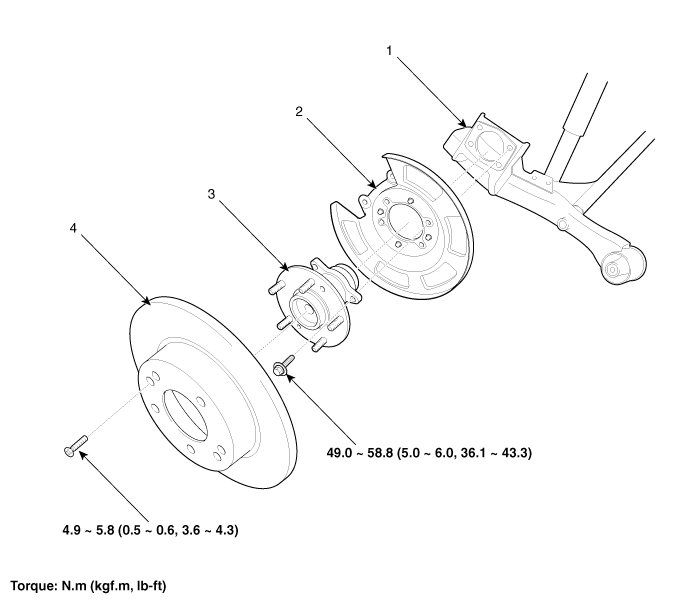

Components

1. Rear torsion beam assembly
2. Rear dust cover
3. Rear wheel hub assembly
4. Rear brake disc
