Hyundai Veloster: Master Cylinder. Components and Components Location - Brake System - Brake SystemHyundai Veloster: Master Cylinder. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Brake System / Brake System / Master Cylinder. Components and Components Location

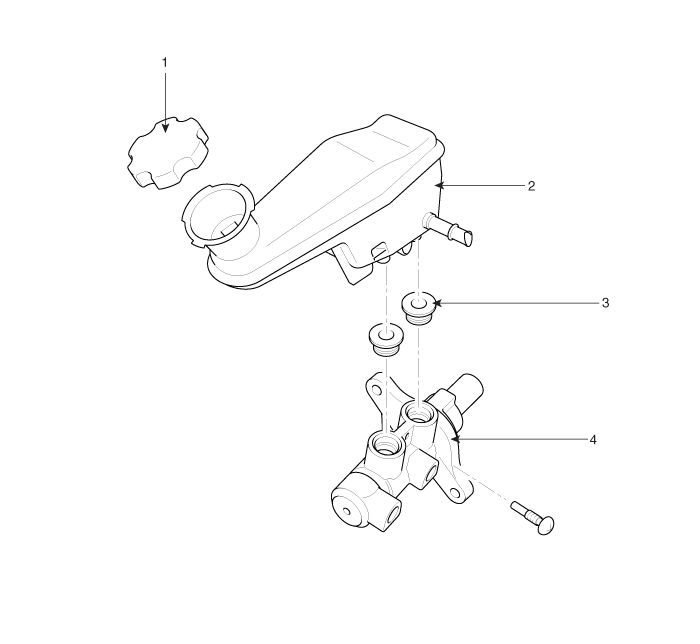

Components

1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder assembly
