Hyundai Veloster: Fuel Pressure Control Valve. Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: Fuel Pressure Control Valve. Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Fuel Pressure Control Valve. Schematic Diagrams

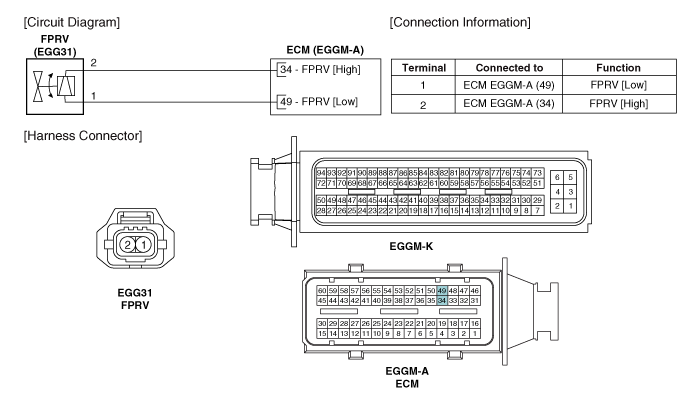

Circuit Diagram
