Component Location
|

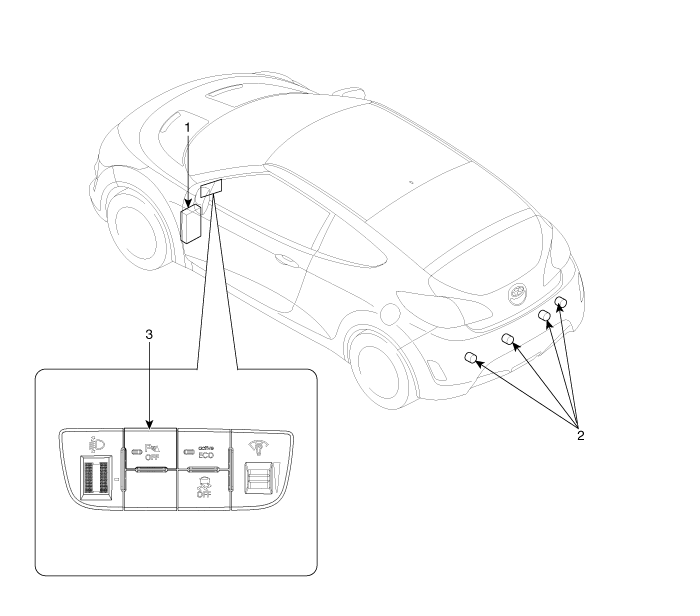

1. IPM 2. Ultrasonic sensor |
3. Rear parking assist switch (OFF) |
|
※ The IPM contains the rear parking assist system function. ※ Buzzor is built in IPM. |
Specifications
Specification
Description
Specification
Ultrasonic sensor
Rated voltage
DC 12V
Detecting range
11.8~47.2 i ...
Description and Operation
System Overview
RPAS(Rear Parking Assist System) is an electronic driving aid device warning
driver to be cautious during parking or low speed when after detecting an object
on side and behi ...
