Hyundai Veloster: Power Window Switch. Schematic Diagrams - Power Windows - Body Electrical System - Hyundai Veloster 2010-2019 Service ManualHyundai Veloster: Power Window Switch. Schematic Diagrams

Circuit Diagram

Driver Power Window Switch

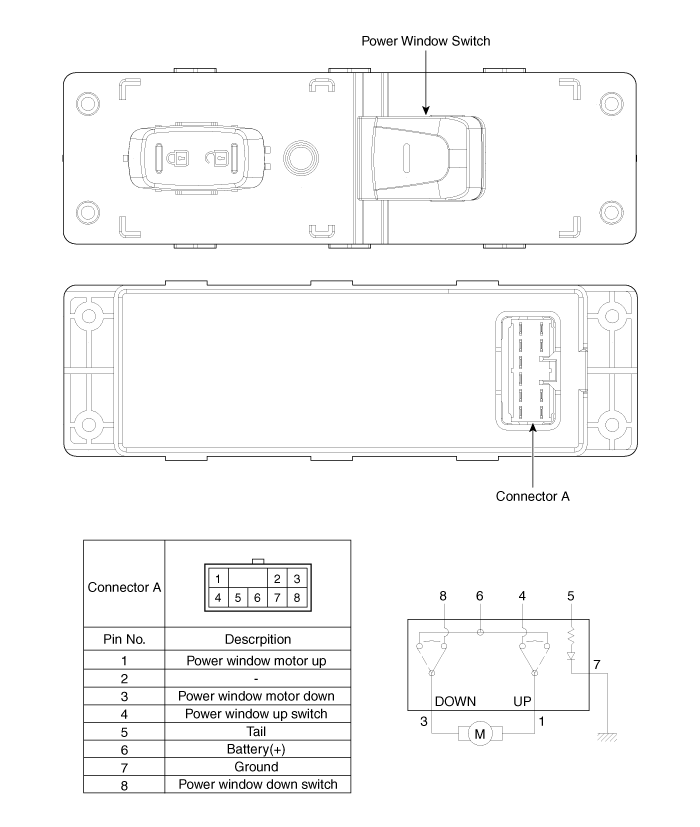

Passenger power window switch

Passenger power window switch

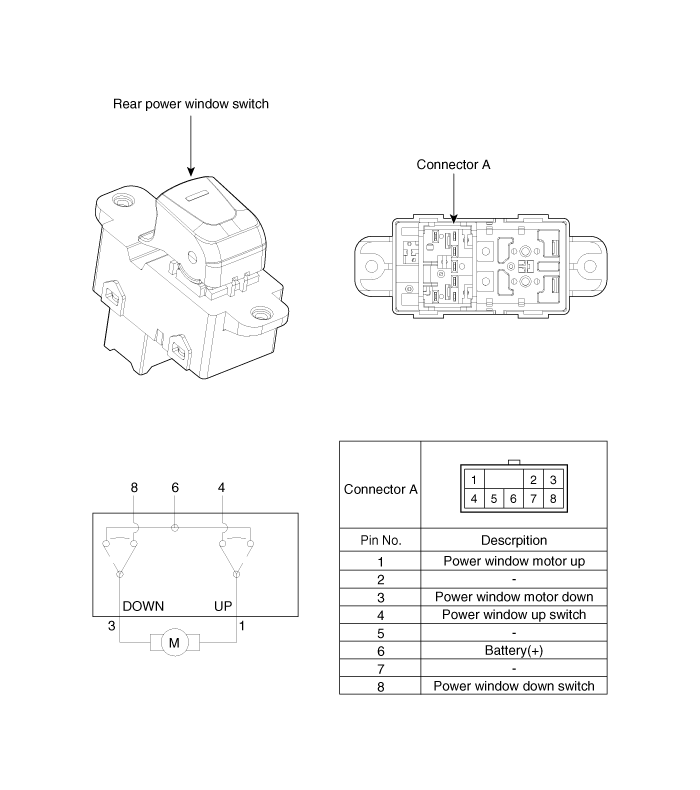

Rear power window switch

Rear power window switch


Power Window Motor. Repair procedures
Inspection Front Power Window Motor Inspection 1. Remove the front door trim panel. (Refer to the BD group - "Front door") 2. ...

Power Window Switch. Repair procedures
Inspection Power Window Main Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim panel. ...
