Hyundai Veloster 2011-2017 Service Manual / Brake System / Parking Brake System / Parking Brake Assembly. Components and Components Location

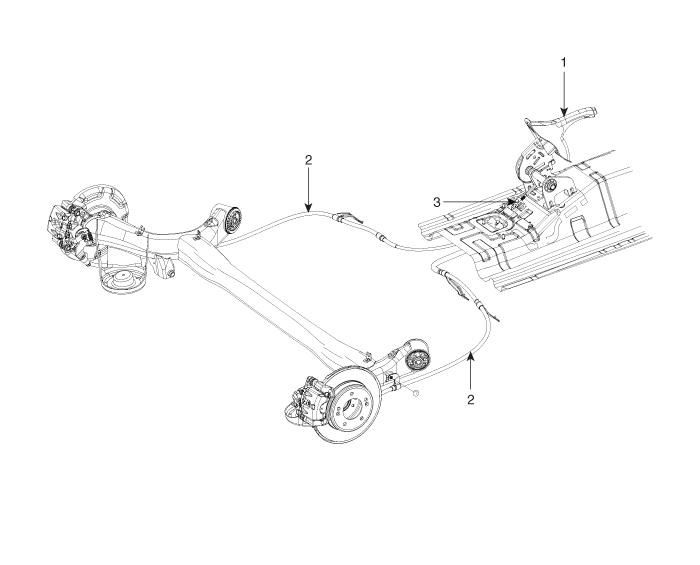

Components

1. Parking brake lever
2. Parking brake cable
3. Equalizer assembly
